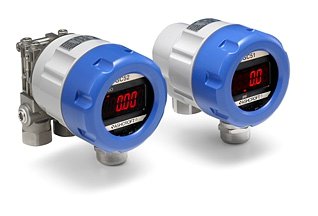

Ashcroft Type GC51 Rangeable Pressure Transmitter
|
Item Number: GC51-7-F02-42
Manufacturer: Ashcroft
Part Number: GC51-7-F02-42
Product Options
* denotes required field
Ashcroft Pressure Transmitter Electrical Termination Options*
You must select an option for 'Ashcroft Pressure Transmitter Electrical Termination Options'.
Ashcroft Pressure Transmitter Pressure Range Selection*
You must select an option for 'Ashcroft Pressure Transmitter Pressure Range Selection'.
Oxygen Cleaning Option
Ashcroft Pressure Transmitter Calibration Options
* Whole number only
|
|

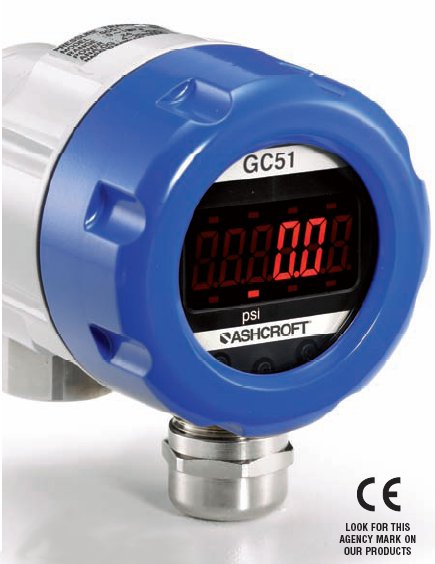

Aschroft GC51 Rangeable Pressure Transmitter
The new Ashcroft® Model GC51 is a uniquely compact pressure transmitter, ideal for monitoring pressures in process automation, hydraulic systems, compressors, pumps and in tank level applications where consistent, reliable pressure measurement is essential. The GC51 is equipped with Ashcroft®'s field-proven thin film sensor and can monitor a wide variety of wet or dry media.
The GC51 is available in ranges from 0-50 to 0-7500 psi and compound ranges up to -15/50 psi, this versatile transmitter includes a min./max. hold feature to record high and low pressure events. A rugged aluminum NEMA 4X/IP-65 enclosure measures only 2.65 inches in diameter and incorporates a backlit LCD display for local reading. The output is a two-wire configurable 4-20 mA signal that can be adjusted to re-range the transmitter or "tare" unwanted fluid head preloads. BENEFITS & FEATURES:
- Up to 8 times smaller than a conventional process transmitter
- Robust NEMA 4X (IP65) aluminum die cast housing
- Bright backlit LCD display
- All Stainless Steel wetted parts
- Ranges from 0/50 to 0/7500 psig and compound to -15/50 psi
- 2 wire 4-20 mA output
- Internal push-button configurability allows quick range changes
- Scaling function allows display to indicate arbitrary physical units
- "Loop Check" function allows unit to output 4-20 mA without applying pressure
- "Min/Max Hold" function allows display to capture pressure events
- Easily rotatable display, 90° increments
- Key Lock
  |
