Ashcroft GC31 Ultra-Compact Digital Pressure Sensor Switch
|
Item Number: GC31
Manufacturer: Ashcroft
Part Number: GC31
Product Options
* denotes required field
Pressure Connection Selection*
You must select an option for 'Pressure Connection Selection'.
Switch Type Selection*
You must select an option for 'Switch Type Selection'.
Pressure Range Selection*
You must select an option for 'Pressure Range Selection'.
* Whole number only
|
|

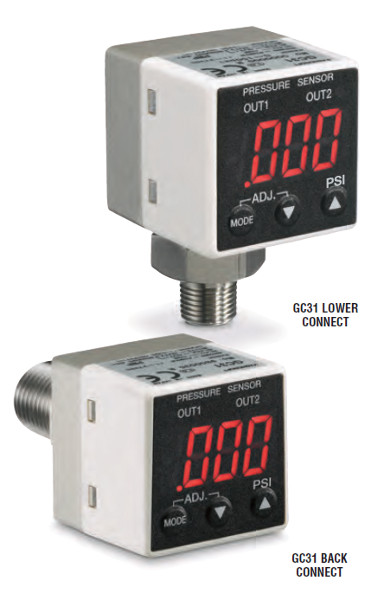

Ashcroft GC31 Ultra-Compact Digital Pressure Sensor Switch
The new Ashcroft Model GC31 is a uniquely compact pressure sensor, ideal for monitoring pressures in hydraulic presses/stamping equipment and lifts, tire vulcanization, cooling and lubricating systems, alarm/control and pressure monitoring where consistent, reliable, pressure measurement is essential. The GC31 is equipped with Ashcroft's field-proven thin film sensor and can monitor a wide variety of applications.
Available in gauge pressure from 0-50 to 0-1500 psi and compound ranges up to 150 psi and vacuum, this versatile sensor includes a min./max. hold feature to record high and low pressure events, and adjustment for controlling display rates. The 1.2" x 1.2" (30 mm x 30 mm) enclosure incorporates a 3 1/2 LED display. Analog scaling allows the user to configure the unit to any range within the full scale of the sensor range, while integrated switches offer the actuation and deadband to any points within the full scale range.
Applications
- Hydraulic presses, stamping equipment, lifts
- Tire press vulcanization, pressure monitoring
- Water, refrigerant or ammonia based cooling systems
- Pressure monitoring on lubrication systems
Features
- Ultra-compact design 1.2˝ x 1.2˝ (30mm x 30mm)
- Combined three-in-one digital pressure gauge, switch and transducer
- Simple “Push-Button” configurability allows user to adjust switch settings, analog scaling
- Numerous standard ranges available

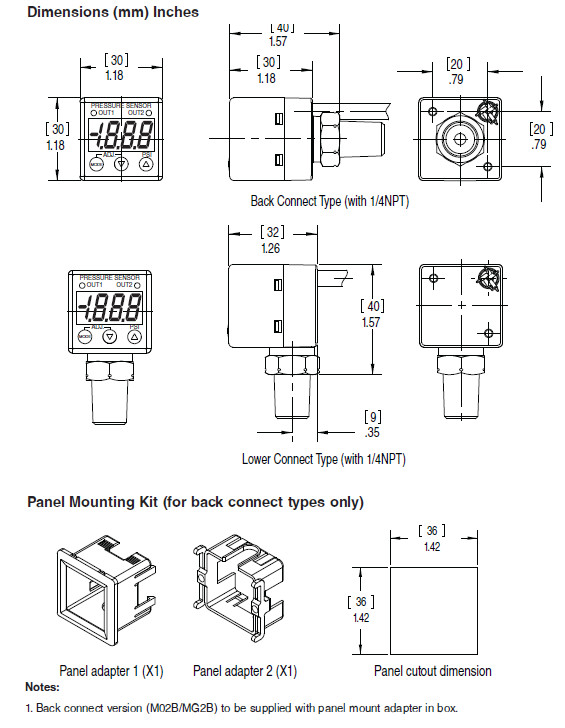

Dimensions Technical SpecificationsAnalog Output (1-5Vdc):Accuracy: ± 1.0% FS (accuracy includes the effects oflinearity, hysteresis and repeatability)Response time: 50msecOutput resolution: 25mVAnalog scaling: User may configure analog outputscaling to any range within full scale of sensor rangePressure Switch Output:Type: NPN or PNP open collector up to 30Vdc/80maSetting accuacy: ± 1.0% F.S.Number of contacts: 2Time delay: 5 msec −2.0 sec (by user)Hysteresis: variable (by user)Switch setting: User may adjust switch actuation &deadband to any points within full scale sensor rangeDisplay:Type: 31⁄2 digit, 10mm LEDAccuracy: ± 1.0% FS ± last digitDisplay setting: User may re-configure displayscaling, set to capture MIN or MAX value, and adjustdisplay update ratePSI Ranges:Standard Ranges (Gauge):0 to 50 psig, 100 psig, 150 psig, 300 psig, 500 psig,1000 psig, 1500 psigStandard Ranges (Compound):−15 to 15 psig,−15 to 75 psig, −15 to 150 psig,−15 to 300 psigENVIRONMENTAL SPECIFICATIONSTemperature Limits:Storage: −22 to 140°F (−30 to 60°C)Operating: −4 to 140°F (−20 to 50°C)Compensated: 14 to 122°F (−10 to 50°C)Temperature Effects:Zero/Span: ±0.03% F.S./F (±0.05% F.S./C) from 73°F(23°C) reference temperatureHumidity: 0-85% RH (Non-Condensing)FUNCTIONAL SPECIFICATIONSProof Pressure: 2X range: 500 psi & below1.5X range: 1000 psi & aboveBurst Pressure: 8X rangeCE compliance: EN61326-1 2006, EN61326-2-3 2006ELECTRICAL SPECIFICATIONSPower Supply Requirements:Supply voltage: 11-27VdcCurrent consumption: 30mA (max)Switch Contacts:(2) NPN or PNP open collector outputsNPN Type: 30Vdc / 80mA (max)PNP Type: voltage drop 1Vdc (max)/80mA (max)MECHANICAL SPECIFICATIONSPressure Connection: 1⁄4 NPT (Male)Enclosure: ABS, polycarbonate, aluminumRating: IP40Electrical Connection: 6ft cable pigtailWeight: Approx. 110 gramsMounting: Panel mounting bracket included(back connect only)Media: Fluids and gases compatible with 304 SS(sensor housing) and 17-4 pH SS (sensor diapragm)
|
