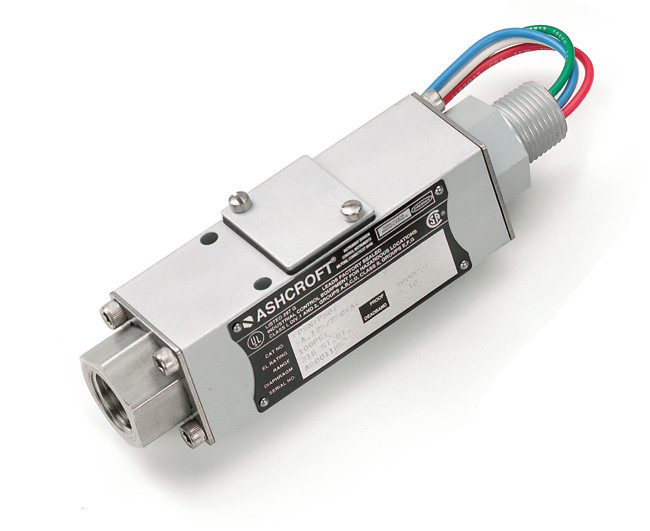

Ashcroft F-Series Explosion Proof Compact Pressure Switch
|
Item Number: FPS
Manufacturer: Ashcroft
Part Number: FPS
Product Options
* denotes required field
Switch Element Selection*
You must select an option for 'Switch Element Selection'.
Actuator Seal Selection*
You must select an option for 'Actuator Seal Selection'.
Pressure Connection Selection*
You must select an option for 'Pressure Connection Selection'.
Pressure Range Selection*
You must select an option for 'Pressure Range Selection'.
* Whole number only
|
|
Ashcroft F-Series Explosion Proof Compact Pressure Switch
The Ashcroft® F-Series switch line of compact, adjustable pressure switches is designed to satisfy most requirements for alarm, shutdown, control and interlock on a wide variety of process and equipment applications. Electromechanical pressure switches are usually more cost effective than transmitters for these applications. Materials of construction have been selected for long life. A wide variety of precision switch elements are available to meet every application requirement, including standard hermetically sealed contacts with added reliability and safety. The actuators we use have been proven in more than 20 years of service in the world’s plants and mills. Simplicity and ease of use are stressed to improve reliability of the installation. F-Series is designed to easily retrofit many similar models and are readily available.
Hermetically Sealed Switch
All Ashcroft F-Series models feature standard hermetically sealed switch contacts. We recommend hermetically sealed switch elements for improved reliability in harsh and corrosive environments. The Ashcroft F-Series is also approved for installation in Division I and II hazardous locations.
Features
- Diaphragm-sealed piston actuator for long, reliable service
- Choice of wetted materials and pressure connection for all applications
- Watertight anodized aluminum body for environmental protection
- Hermetically sealed snap-acting switch element
- Field adjustable
- Standard 1/2 NPT Male electrical conduit connection
- Factory sealed leads
- Directly interchangeable with many similar models for convenience
- UL and CSA listed standard
- Setpoints adjustable from 15-100% of range. Exception: stainless steel welded (codes) adjustable from 20-100%
Ideal for pressure alarm, shutdown, control on:
- Engines and compressors
- Process applications
- Offshore applications
- Panels
- Pipelines
- Hazardous locations
- Corrosive environments
- Machine tools
- Replacement and retrofit
- Where size is a consideration or equipment is being downsized

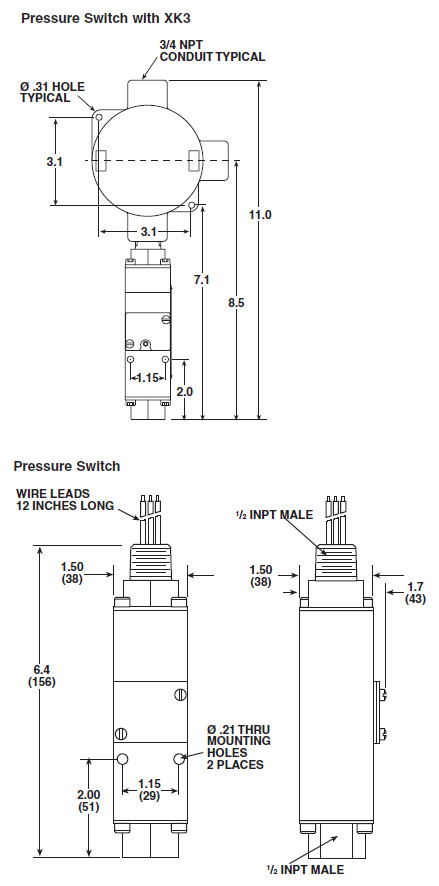

Dimensions
|
