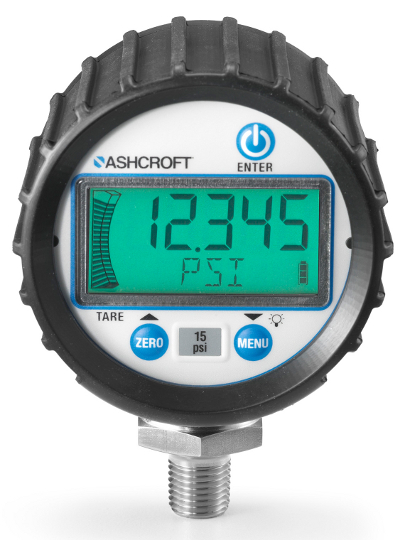

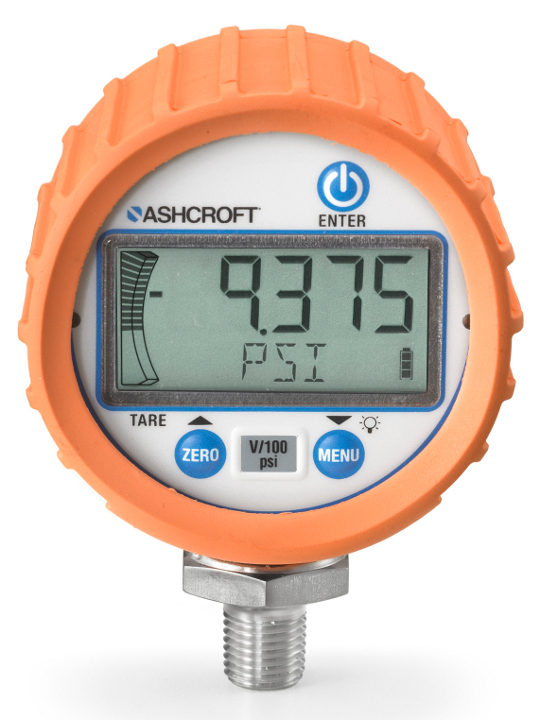

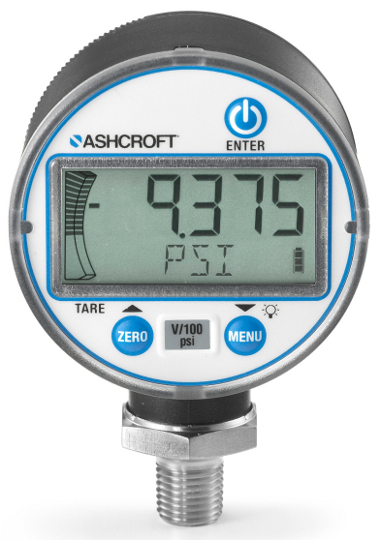

Ashcroft DG25 Industrial Digital Pressure Gauge



     The Ashcroft DG25 line of digital gauges is available in 0.5% accuracy, and a more enhanced accuracy of .25% of span. With its IP 67 ingress rating, it is fitting for many test and measurement uses as well as demanding processes, like equipment wash down. It has 9 pre-programmed engineering units of measure to read pressure in units similar to the process or to the technician using the gauge.

     The DG25 has a laser-welded stainless steel sensor and socket that comes standard with abundant features such as: tare, min and max memory, programmable custom engineering units, and pressure ranges from vacuum to 25,000 psi. It was constructed, keeping in mind the OEM, allowing it to be easily custom configured to reach distinct requirements, add or delete features, and be altered with private label keypad overlays.

• 0.5% full scale standard accuracy (0.25% optional increased accuracy)
• Durable long life keypad and new enhnaced menu system
• 5 digit LCD display with large .48˝
  digit size
• New 20 segment bar graph display
• 9 engineering units of pressure and one user configurable custom unit
• Available in gauge, vacuum or compound ranges from -14.7 PSIG Vacuum
   to 25,000 PSIG
• Rated weatherproof enclosure, (1 meter underwater immersion for 1 hour)
• ASME 40.7, CE compliant, RoHs compliant, UL and
  cUL 61010-1(approval pending)
• Increased battery life of up to 2000 Hours
• The DG25 is a full replacement for the discontinued Ashcroft D1005 gauge
