Ashcroft AM2-RT RTD Temperature Module
|
Item Number: AM2-RT
Manufacturer: Ashcroft
Part Number: AM2-RT
Product Options
* denotes required field
AM2-RT Module Selection*
You must select an option for 'AM2-RT Module Selection'.
* Whole number only
|
|

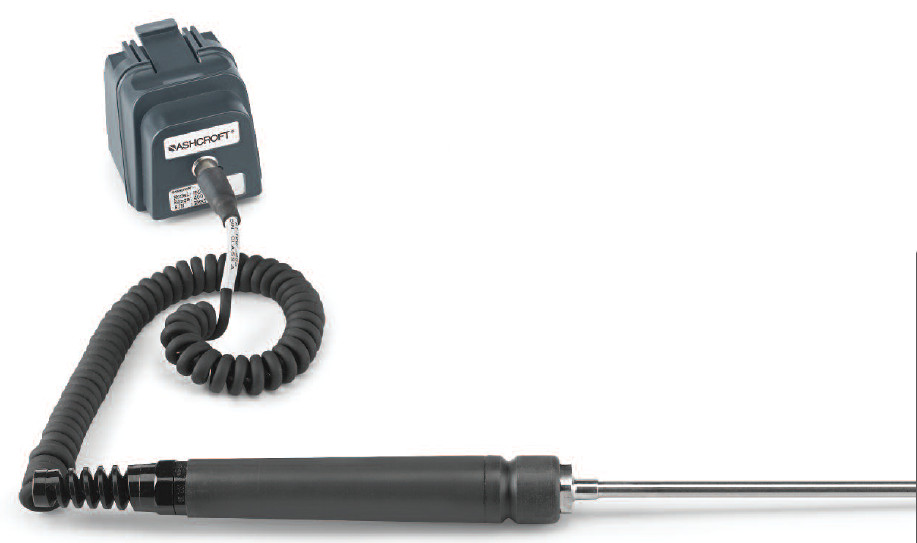

Ashcroft AM2-RT RTD Temperature Module
The Ashcroft AM2-RT provides accurate temperature measurements for the ATE-2 by using a RTD probe.
AM2-RT Module Descriptions
AM2-RT1: RTD probe interface module for Pt100, Ni 120, Cu 10 and other RTDs with resistance outputs of 400 ohms or less
AM2-RT2: RTD interface module for use with Pt1000 RTD probe and other RTDs with resistance outputs of 4000 ohms or less
Features
- Measures temperature with most RTD probes
- Supports 2, 3 & 4-wire RTDs
- Displays measurement for Fahrenheit, Celsius, Kelvin, Rankine and ohms
- Easy configurability to meet application requirements
Technical Specifications
|
AM2-RT1 MODULE
|
|
Used with RTD
Probe Type
|
Measurement Range
and Accuracy
|
Resolution*
|
|
Pt100 (385
& 392)
|
—200 to 550°C: ±0.15°C
550 to 850°C: ±0.2°C
|
0.01°C or F
|
|
Ni 120
|
—80 to 260°C: ±0.1°C
|
0.1°C or F
|
|
Cu 10
|
—70 to 150°C: ±0.6°C
|
0.1°C or F
|
|
Ohms
|
±0.01% reading ±0.02 ohms
|
0.004 ohms
|
|
AM2-RT2 MODULE
|
Used with RTD
Probe Type |
Measurement Range
and Accuracy |
Resolution* |
| Pt1000 |
—200 to 550°C: ±0.15°C |
0.01°C or F |
| Ohms |
±0.01% reading ±0.02 ohms |
0.004 ohms |
*Select from 1, 0. , 0.01 and 0.001 degrees or ohms. Resolution for a
given probe is dependent on the output of the probe. Maximum resolution
is 1 part in 100,000 of full scale ohms Select from 1, 0.1, 0.01 and 0.001
degrees or output for the probe.Temperature Error: Better than ±0.0005% ofreading per degree Fahrenheit from a referencetemperature of 70° ±3° degrees F°
Input Receptacle: TA4F type RTD connector
|
The Ashcroft 840X010 probes measures temperature with common RTD measurement devices.
|
Ashcroft ATE-2 pressure calibrator can be expanded with pressure modules ranging from 0.25" water to 10,000 PSIG. The ATE2 includes data logging, loop power supply, loop read back, pressure switch test, rtd and thermocouple readout.
|
