Ashcroft A2X Explosion/Flame Proof Pressure Transmitter

Our Price: $479.87

Item Number: A2X

Manufacturer: Ashcroft

Part Number: A2X

Product Options

* denotes required field

Accuracy and Temperature Range Selection*

Pressure Fitting Selection*

Output Signal Selection*

Electrical Termination Selection*

Pressure Range Selection*

Pressure Type Options*

Calibration Options

Calibration Not Included

Standard Calibration (+ $75.00)

ISO 17025 Accredited Calibration Certificate (+ $120.00)

Variation Options

Non-Standard Pressure Range Calibration (10 pc. minimum) (+ $60.89)

Cleaned for Oxygen Service (+ $47.70)

17-4PH

Quantity:

Email this page to a friend

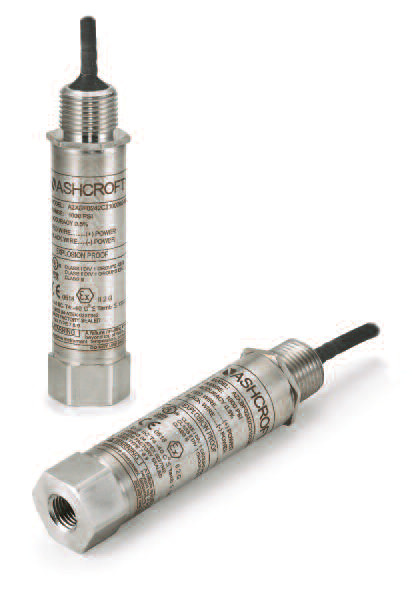

Ashcroft A2X Explosion/Flame Proof Pressure Transmitter

The Ashcroft® A2X pressure transmitter is ideal for a broad spectrum of pressure sensing requirements where explosion/flame proof hazardous location ratings are required. The Ashcroft® A2X is designed and manufactured to provide the user with accurate, reliable, and stable output data. This is accomplished through the use of an on board microprocessor, that is programmed during a unique digital compensation process, to provide extremely linear and precise performance over the entire specified pressure and temperature range.

Features

Choice of .25, .50 or 1.0% accuracy
Explosion proof and flame proof approvals, cUL and ATEX
Pressure ranges from 5 psi through 10,000 psi
CE mark is standard
316L SS wetted materials
304 SS case
Six output signals to choose from
Optional absolute pressure ranges available

Applications

Oil field equipment
Upstream oil and gas production
Natural gas compression and transfer control
Alternative energy projects

Technical Specifications

PERFORMANCE SPECIFICATIONS
Reference temperature 70°F (21°C)
Accuracy, Three Classes (% Span): ±.25 ±0.5 ±1.0
Includes non-linearity (Terminal Point Method), hysteresis,
non-repeatability, zero offset and span setting errors
Best Fit Straight Line* (BFSL): ±.20 ±.40 ±.50
Includes non-linearity hysteresis, non-repeatability errors
*Add ±.05% for ranges above 5000 psi
Stability:
±0.25% Span/year @ reference conditions
Durability: Greater than 10 million cycles

ENVIRONMENTAL SPECIFICATIONS
Temperature Limits:
Storage:         –40 to +125°C (–40 to 257°F)
Process:         –40 to +125°C       (–40 to 257°F)
Operating:      –40 to +125°C       (–40 to 257°F)
Compensated*:–20 to +85°C        ( –4 to 185°F)
*Consult factory for other options
Temperature Effects: –20 to +85°C (–4 to 185°F)
• 1.0% of Span for .25% Accuracy Class
• 2.0% of Span for .50% and 1.0% Accuracy Classes
Humidity Effects: No performance effects from
0 to 95% relative humidity, non-condensing,
0-100% RH with “W” enclosure.
*Consult factory

FUNCTIONAL SPECIFICATIONS
Response Time: <2ms
Pressure Ranges: Vacuum, gauge, compound and absolute
pressure from 0-5 psi through 0-10,000. Equivalent ranges
in bar available. See order guide section (reverse.)
Vibration Effect:
Shock:       100g Peak, 11ms
Random:    10g RMS, 20-2000Hz
Sweep:       50-2000Hz, 5g peak
Position Effect: ± 0.02% Typical
CE Mark (standard): EN 61326:1997 + A1: 1998 Annex A
Heavy Industrial Immunity (Annex A, Table A.1)
Light Industrial/Residential Emission (Table 4)
Overpressure (F.S.)*: Proof      Burst
0#/vac. to 300 psi             1.5 x F.S.    min. 2 x F.S.
500-10,000 psi                  1.2 x F.S.    1.5 x F.S.

ELECTRICAL SPECIFICATIONS
Output Signal:         Supply Voltage: (unregulated)
                                     Minimum          Maximum
0-5Vdc         (3 Wire)         12Vdc               36Vdc
0-10Vdc       (3 Wire)         14Vdc               36Vdc
1-5Vdc         (3 Wire)    10Vdc                36Vdc
1-6Vdc         (3 Wire)        10Vdc                36Vdc
4-20mA        (2 Wire)        12Vdc                36Vdc*
0.5-4.5         (3 Wire)        4.5Vdc               5.5Vdc
Ratio metric
*30Vdc max for Intrinsically Safe installations
Power Requirements:
Supply Current: <5mA for voltage outputs
Electrical Termination:
1/2 NPT male conduit with flying leads or shielded cable
Circuit Protection: Reverse polarity and mis-wire protected
Insulation Resistance (Circuit to Case): 100Mohm @ 30Vdc

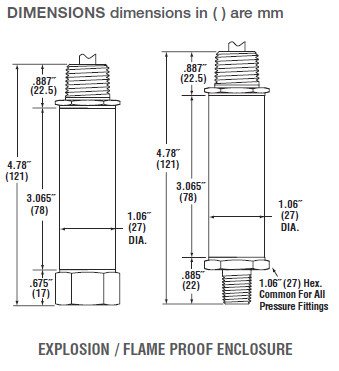

PHYSICAL SPECIFICATIONS
Case: Material 304SS
Wetted Materials: 316L SS diaphragm and pressure port,
optional 17-4PH SS diaphragm and 316L SS pressure port
(see How to Order Section).
Ingress Protection Rating: IP65; NEMA 7,9

Ashcroft A2X Data Sheet
