Ashcroft A-Series Miniature Explosion Proof Pressure Switch
|
Item Number: APSN7
Manufacturer: Ashcroft
Part Number: APSN7
Product Options
* denotes required field
Function/Enclosure Selection*
You must select an option for 'Function/Enclosure Selection'.
Micro Switch Selection (not available in APA model w/S actuator with ranges <200 psi)*
You must select an option for 'Micro Switch Selection (not available in APA model w/S actuator with ranges <200 psi)'.
Electrical Connection Selection*
You must select an option for 'Electrical Connection Selection'.
Actuator Seal Selection*
You must select an option for 'Actuator Seal Selection'.
Pressure Connection Selection*
You must select an option for 'Pressure Connection Selection'.
Range Selection*
You must select an option for 'Range Selection'.
Setpoint Selection*
You must select an option for 'Setpoint Selection'.
* Whole number only
|
|

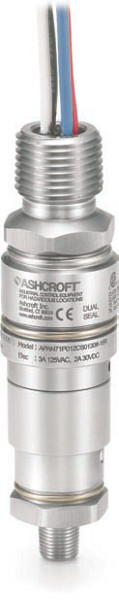

Ashcroft A-Series Miniature Explosion Proof Pressure Switch
The Ashcroft® A-Series miniature pressure switches are designed for tough applications where conventional designs often don't measure up. A rugged 316 SS enclosure gives uncompromising protection. Materials of construction have been selected for long life. Precision snap acting micro switches are featured and fully encased to prevent moisture from corroding switch contacts. The switch, depending on range, is either an all welded 316 stainless steel diaphragm sealed piston design or a direct acting piston design sealed with a Buna-N or Viton O-ring. Ideal for pressure alarm, shutdown, or control in hazardous areas and wherever size is a consideration or equipment is being downsized.
Features
- 316 Stainless Steel Body
- Compact Size
- 316 Stainless Steel Construction
- Pressure ranges from Vacuum to 7,500 psi
- Field Adjustable Set Point or Factory Set Only
- Wide Operating Temperature Range (-40°C to 89°C)
- Precision Snap Acting Micro Switch Element
- SPDT or DPDT Switching
- UL, CSA Listed Models
- CRN Models Available
- CE and ROHS Complaint
- SIL 3 Capable
- FM Approved
- Dual Seal Rated
- ATEX, IECEx
Applications
Oil and gas industry
- Offshore oil rigs
- Oil & Gas Production
- Oil Pipelines
- Gas Transmission/Distribution Systems
- Refineries (where 316 stainless steel construction and small size is desirable)
Chemical and petrochemical plants
- Process Industries
- Process Gas
- Pumps, Compressors & Turbines (where small size and corrosion resistance construction is important)
Other special machinery and equipment applications
- where small size and high performance are desirable

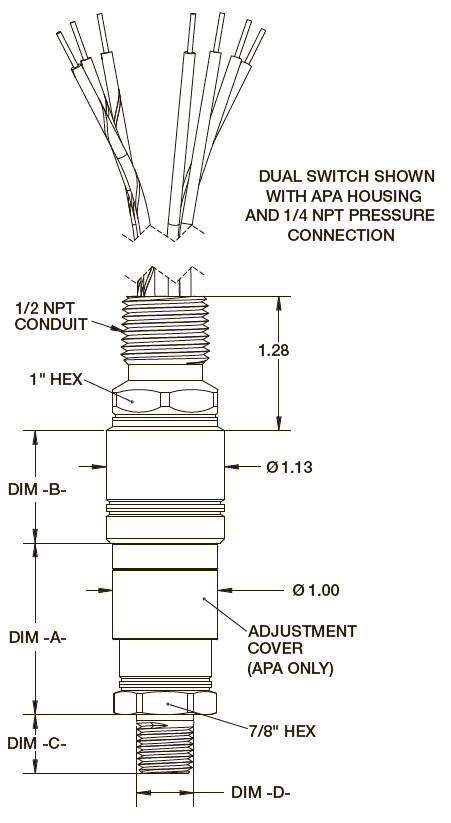

Dimensions
Technical Specifications
Setpoint: Factory set or field adjustable
Setpoint
repeatability: ±2% of range
(Additional setpoint shift of ±2% of range per
40°F from initial setpoint set at 70°F typical)
Vibration: Passed MIL-STD-202G
Shock: 75G’s 10 milliseconds 3 axis
Piston: Stainless steel with Viton or Buna-N O-ring
Mechanical
life piston
design: >1,000,000 operations typical
Diaphragm: 316L SS
Mechanical
life diaphragm
design: >400,000 operations typical
Enclosure
material: 316L SS
Enclosure
rating: NEMA 4X, 7, 9, IP 67
Pressure
connection: 1⁄8 NPTF, 1⁄4 NPTF, 1⁄4 NPTM, 1⁄8 NPTM, 7/16-20 SAE
M, VCR, VCO, 3⁄4˝ Tri-Clamp®, 1.5˝ Tri-Clover®,
2.0˝ Tri-Clover® , G1⁄4 B, G1⁄4 A Type E Stub end
Electrical
output: SPDT, or DPDT 5A or 3A 120Vac, 2A @ 30 Vdc,
5A @ 28 Vac, gold contacts available
Electrical
termination: 18 AWG wire leads, with 1⁄2 NPT conduit connection.
|
Ashcroft A-Series miniature pressure switches are designed for tough applications where conventional designs often don't measure up. A rugged 316 SS enclosure gives uncompromising protection.
| |
