Ashcroft 2174 Industrial Loop Powered Digital Pressure Gauge

Our Price: $446.66

Item Number: 2174

Manufacturer: Ashcroft

Part Number: 2174

Product Options

* denotes required field

Aschcroft Gauge Case Style/Size Selection*

Ashcroft Precision Test Gauge Range Selection*

Ashcroft Precision Test Gauge Front Flange Option*

Ashcroft Digital Gauge Backlight Option*

Ashcroft Precision Test Gauge Special Cleaning Option*

NIST Traceable Calibration*

Quantity:

Email this page to a friend

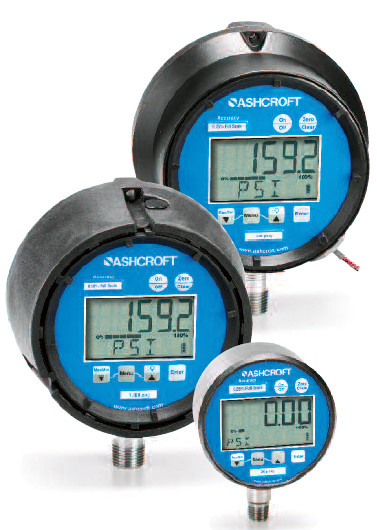

Ashcroft 2174 Industrial Loop Powered Digital Pressure Gauge

Ashcroft 2174 Industrial Loop Powered Pressure Gauge

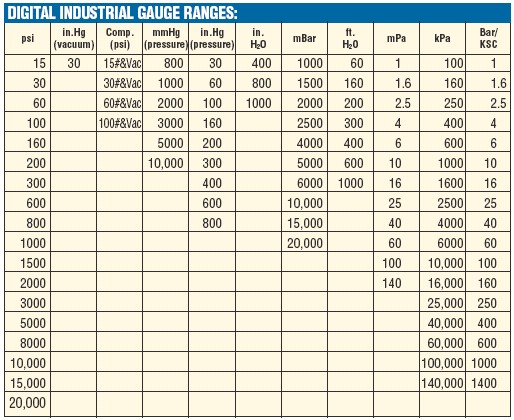

The Ashcroft^® 2074 is an ideal gauge for demanding industrial applications. It is available in three case styles/materials of stainless, thermoplastic or aluminum (3" or 4.5"). Standard gauges are supplied with a 1/4" NPT Lower Mount but other mounting sizes/locations are available, call for pricing details. The gauge comes standard with MIN/MAX, programmable dampening and four selectable scan rates. A five level backlight is optional. All gauge programming can be locked out via password protected menu acess. The gauge can be fully recalibrated in the field with proper test equipment. The models 2174 and 2274 models feature line power operation and analog output options.  The 2274 can also be ordered as an indicating pressure switch. Recently this gauge family has received approval from FM and CE for intrisically safe operation. Ranges are availale from vacuum to 20,000 PSIG.

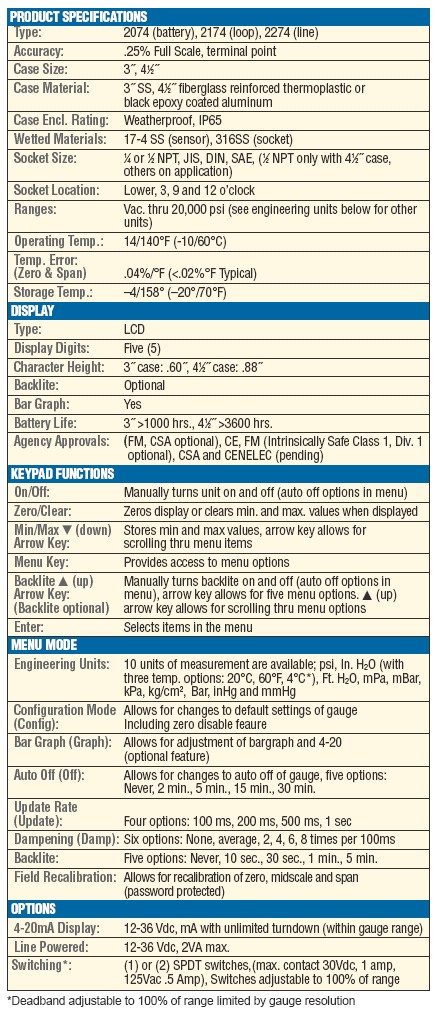

FEATURES
    • A Multi-Functional Digital Industrial Rated Gauge
   • +/-.25% of Span Terminal Point Accuracy (.13% BFSL)
   • IP 65 Weatherproof Case
   • Three Case Options: Stainless Steel, Fiberglass Reinforced Thermoplastic or Aluminum
   • Extra Large Display
   • Intrinsically Safe, Class I, Div. 1 (pending)
   • Easy-to-Use Menu Options: (all password protected)
              - Five Backlite Display Options
              - Twelve Engineering Units
              - Menu Confi gure Feature
              - Update Rate
              - Dampen Rate
              - Auto-Off

Ashcroft 2174 Data Sheet
