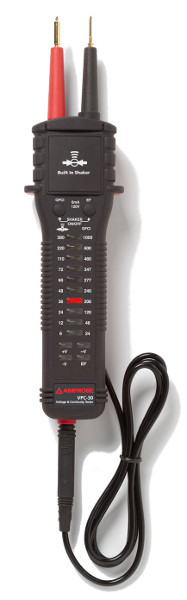

Amprobe VPC-30 Electrical Tester with VolTect and Built-in Shaker

Rugged and easy-to-use testers for live voltage and continuity checks. Built in shaker provides the same functionality and feel as older analog solenoid testers with benefit of full input protection to CAT IV 600V/CAT III 1000V.

• Super-bright bi-Color LED’s indicates safe and dangerous voltages (above 55VDC or 30VAC)
• Auto hold feature - LED’s stay illuminated for 10 sec retaining a reading after the tests are disconnected
• Solenoid tester-like shaker to indicate AC voltage presence
• Automatically turns ON and OFF for easy and quick measurements
• Non-contact voltage detection and GFCI test feature for testing GFCI receptacles and breakers
• Standard detachable test lead (black) for easy replacement with optional longer or specialized probe
• Automatically selects AC Voltage, DC Voltage or Continuity
• LED’s indicate 10 levels of AC and DC Voltages:
• Volts (AC) 24, 48, 120, 208, 240, 277, 347, 480, 600, 1000
• Volts (DC) 6, 12, 24, 36, 48, 60, 72, 110, 220, 380
• Continuity buzzer and Visual continuity indication (LED)
• Water and dust proof, IP65 design

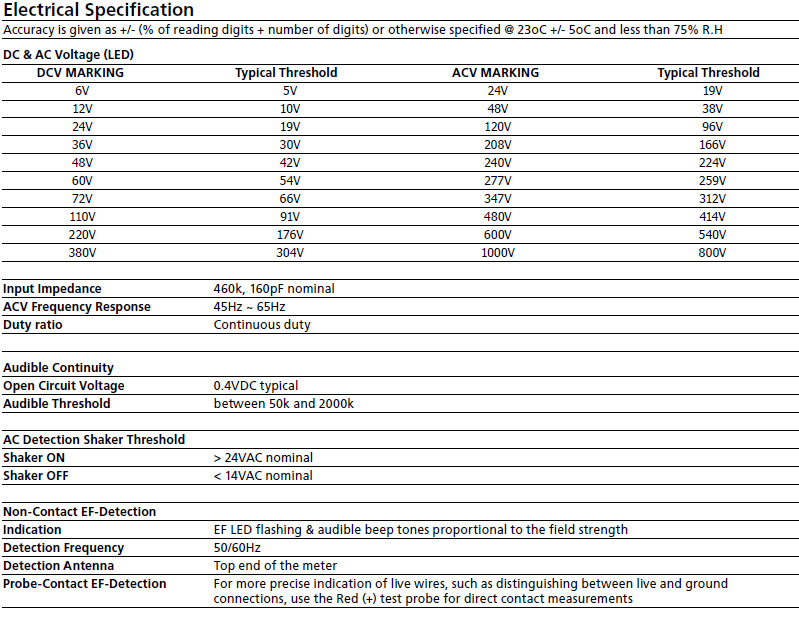

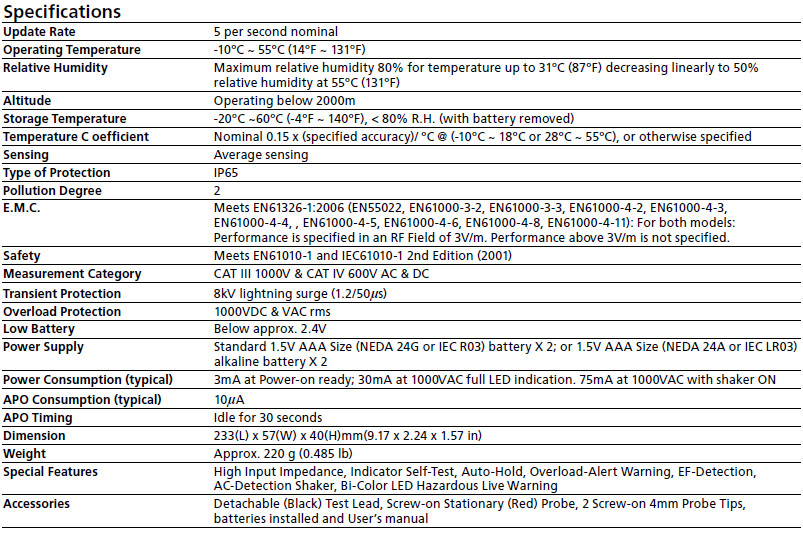

Technical Specifications



Included Accessories
Test Leads
Carrying Case
Bead Type,
Thermocouple with banana plug
Users Manual

Amprobe VPC-30 Data Sheet
