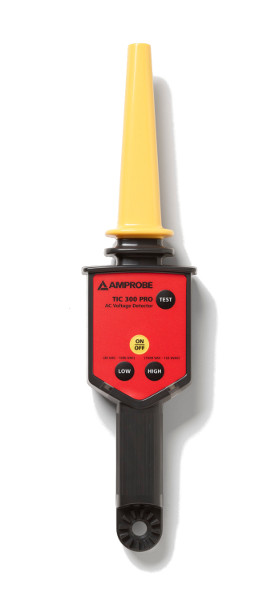

Amprobe TIC 300 PRO High Voltage Detector

Rugged and reliable for utility, industrial and mine safety applications, the TIC 300 PRO with VolTect™ is a Non-Contact, High Voltage Detector that verifies the presence of voltage in low, medium and high voltage test applications up to 122 kV without contacting the energized conductor.

The intuitive VolTect™ alert provides bright visual and loud audible indication when used in close proximity to an energized line. This high voltage detector additionally features:

• A universal adapter for use with electrical Hot Stick TIC 410A for voltage higher than 1500 VAC.
• Push button functionality for ease of use with PPE gloves
• MSHA certification for use in mining applications
• Simple two setting navigation

• High voltage setting for checking transmission lines, power distribution equipment, down power lines, fuses, and load break connectors
• Lower voltage setting for checking voltage presence in breaker panels, breakers, power outlets and wiring
• High voltage detector verifies presence of Voltage from 30 VAC to 122,000 VAC (122kV)
• Non-contact AC voltage detection
• VolTect™ feature provides a bright visual and loud audible alert
• Push button functionality for ease of use with PPE gloves
• Self-test verifies that tester works properly
• Ergonomic design with a convenient handle with universal
• Drop-proof to 6-FT
• Used with Hot Stick Tic 410A for voltage higher than 1500 VAC
• CC-300PRO Case Included

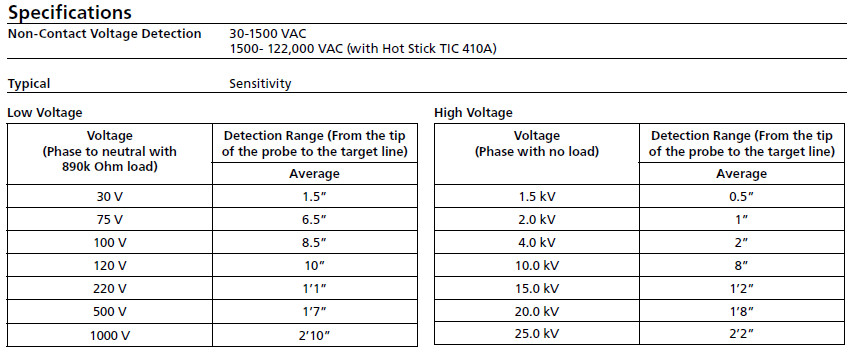

Technical Specifications



Optional Accessories

TIC 410A Hot Stick, CC-300PRO Carrying Case

Amprobe TIC 300 Pro Data Sheet
