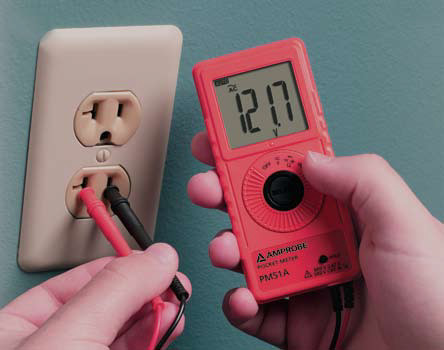

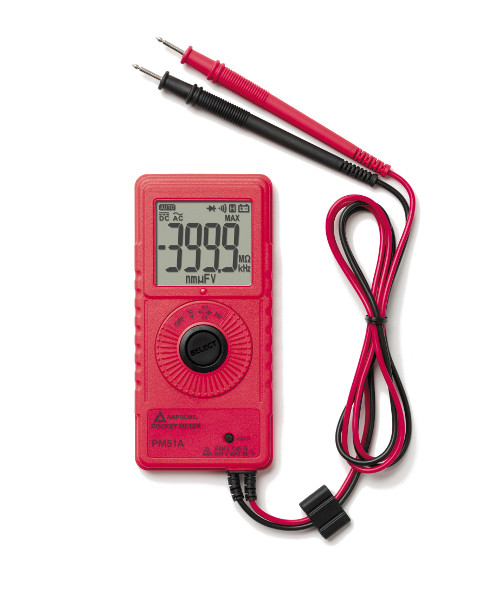

Amprobe PM51A Pocket Digital Multimeter

The Amprobe PM51A, a shirt-pocket sized meter is only 3/8" thick and weighs less than 3 oz. With full functionality offering AC and DC voltage to 600V, resistance to 40 megohm, capacitance to 3000 μF, frequency to 1 MHz, continuity with beeper, and diode test.

Fully auto-ranging, this meter offers seven different measurement functions with 27 full ranges of measurement. The digital display is oversized with large digits and annunciators. In spite of its size, this meter is fully safety rated to CAT III 300 V, CAT II 600 V and is UL listed. No other meter offers this small size with such performance and high safety ratings.

• Measures AC and DC voltage, resistance, continuity with beeper, capacitance and frequency
• Fully autoranging with 7 measurement functions and 27 ranges
• Large oversize digital display with measurement results and the unit icon
• Data hold freezes measurement value
• Average sensing
• Power consumption (typical) 2 mA
• Automatic power off , timing Idle for 30 minutes
• APO consumption (typical) 2.2 μA
• E.M.C. meets EN61326
• Battery installed, and users manual
• Audible continuity tester open circuit voltage 0.4 V DC typical
• Diode tester test current (typical) 0.25 mA
• Diode tester open circuit voltage 1.6 V dc

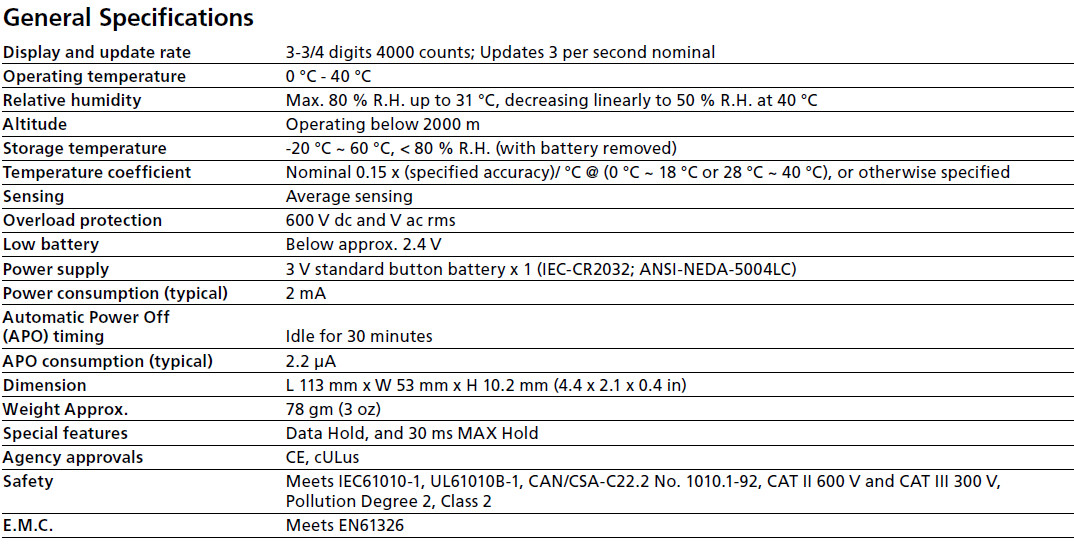

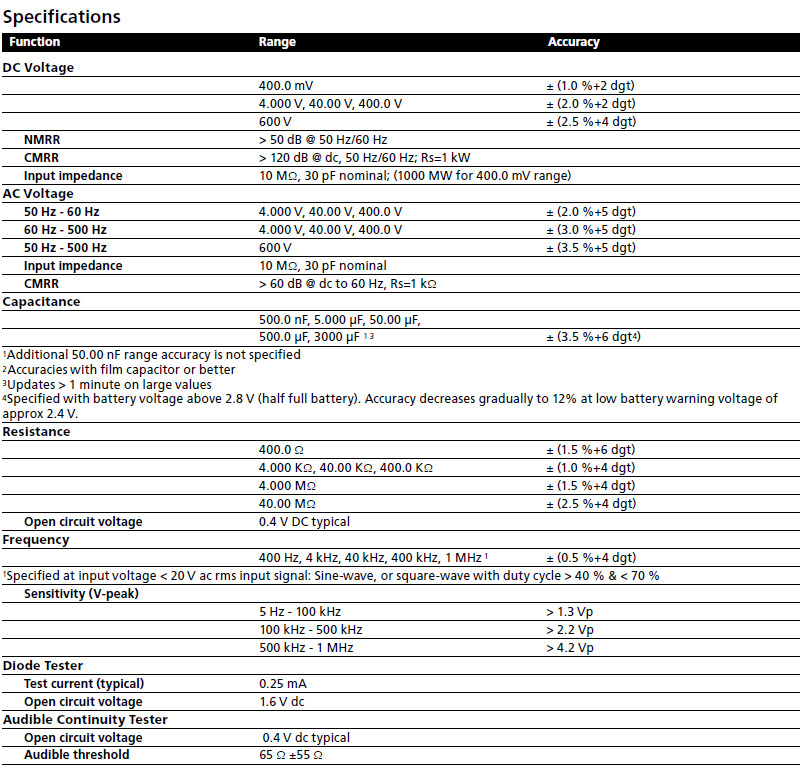

Technical Specifications

Amprobe PM51A Data Sheet
