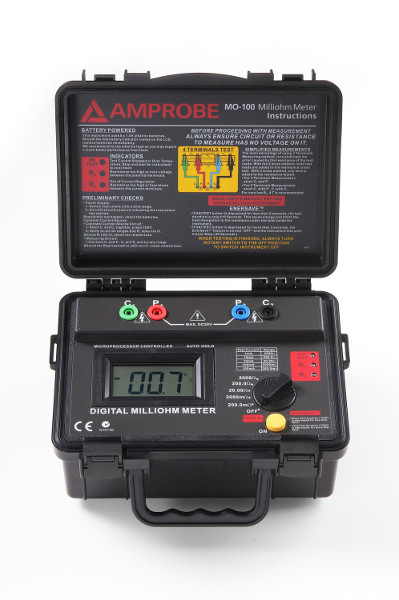

Amprobe MO-100 Milliohm Meter
|
Item Number: MO-100
Manufacturer: Amprobe
Part Number: MO-100
Product Options
Amprobe MO-100 Calibration Options
* Whole number only
|
|
Amprobe MO-100 Milliohm Meter
Diagnose potential failure with the MO-100, portable battery powered milliohm meter. Quickly check windings opens or shorts in motors, generators and transformers, wire-to-wire connection resistances, heating elements testing and contact resistance in critical electrical connections.
Features
- Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
- Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
- Measurement precision with three test currents with over-temperature protection
- Protection against inadvertent connection to overvoltage
- Large LCD
- Potential lead resistance, current lead resistance checks
- Auto-hold and auto-off features
- Lightweight, robust & compact.
- Indicates measurement errors due to temperature or connection problems
- “O-Ring sealed enclosure
- Battery powered
- IEC / EN 61010-1
- Test leads, Instruction manual, Shoulder belt, 1.5V(AA) x 8 Batteries
Technical Specifications
| Measuring Ranges |
0-200.0m ohms in steps of 100μohm |
|
0-200.0m ohms in steps of 100μohm |
|
0-200.0m ohms in steps of 100μohm |
|
0-2000m ohms in steps of 1m ohm |
|
0-20.00 ohms in steps of 10m ohm |
|
0-200.0 ohms in steps of 100m ohm |
|
0-2000 ohms in steps of 1 ohm |
| Accuracy |
±0.5% of reading ±2 digits over the operating temperature range, -15°C to 55°C (5°F to 131°F), |
|
with the supplied test leads |
| Test Current |
1mA =>2000 ohms range |
|
10mA =>200/ 20 ohms ranges |
|
100mA =>2000m / 200m ohm ranges |
| Accuracy |
±0.1% |
| Protection Fuses |
Mains = 0.5A, HBC, 5 x 20mm, DIN |
|
Current = 0.5A, HBC, 5 x 20mm, DIN |
|
Voltage = 0.5A, HBC, 5 x 20mm, DIN |
|
Maximum Output |
|
Voltage (C1-C2) 20V |
| Dimensions |
250(L) x 190(W) x 110(D)mm (9.8 x 7.5 x 4.3 in) |
| Weight |
1500 g (3.3 lb) |
| Accessories |
Test leads, Instruction manual, Shoulder belt, 1.5V(AA) x 8 Batteries |
|
