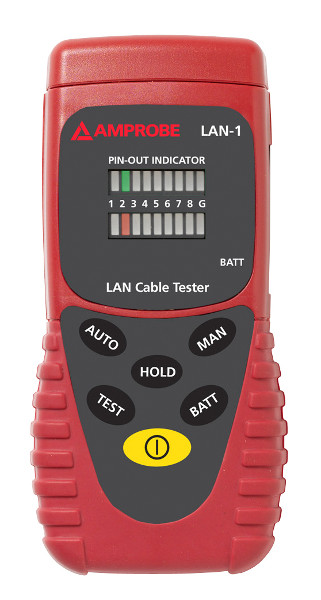

Amprobe LAN-1 LAN Cable Tester

The Amprobe LAN-1 Cable Tester is designed for testing opens, shorts and miswired cable installations. It is designed to work with various data cables and connectors. This cable tester provides a quick go/no-go LED display of the wiring and connection of item under test. You can either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs and display the results.

• Test pin configuration for:
• 10/100 base -T cable
• 10 base-2 cable
• RJ45 modular cables
• AT&T 258A cable
• EIA/TIA 568A/568B cables
• Token ring cable
• Verify the cable wiring for continuity, opens, shorts or incorrect wiring
• Test installed cable on wall plate or the patch panels by using the remote termination module
• Perform loopback test or remote test
• Buzzer sound warning for error condition in cable
• Two sets of LED lights for source and test indication
• Maximum line length: > 300 meters
• Connector types: RJ45, BNC

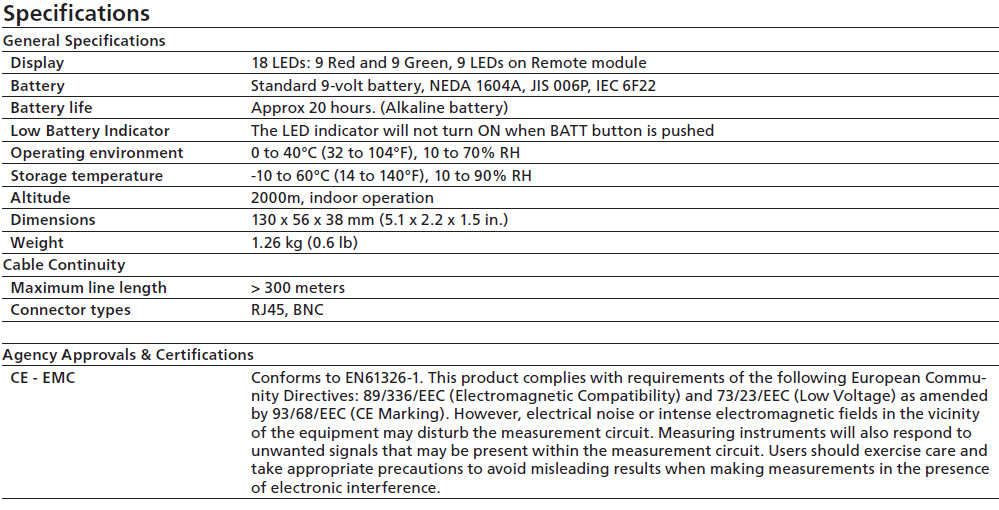

Amprobe LAN-1 Data Sheet
