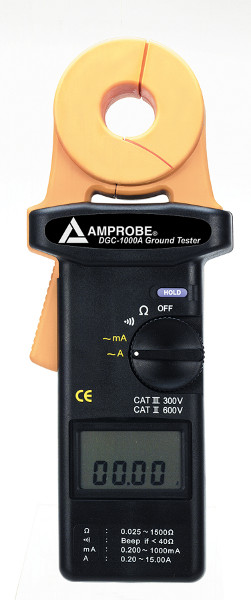

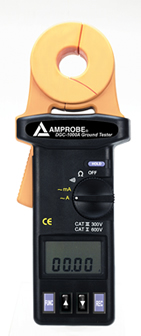

Amprobe DGC-1000A Clamp-on Ground Resistance Tester
|
Item Number: DGC-1000A
Manufacturer: Amprobe
Part Number: DGC-1000A
* Whole number only
|
|
Amprobe DGC-1000A Clamp-on Ground Resistance Tester
Features:
- Accurate ground resistance measurement from 0.025 to 1500 Ohms
- TRMS current measurement including leakage current
- Accurate readings regardless of power quality in less than 10 seconds
- Continuity beep if the resistance is lower than 40.00 Ohms
- Simple and easy to use, no test leads or auxiliary electrodes necessary
- Data logging capability - 116 records
- Individual data point recording
- User selectable High & Low ohm audible alarms
- Auto power off (can be disabled)
- Low battery indicator
- Large LCD display
Specifications:
|
Ground Resistance:
|
0.025 - 0.250 Ohms (+/- 1.5% +/- 0.05 Ohms, resolution 0.002 Ohms)
0.250 - 1.000 Ohms (+/- 1.5% +/- 0.05 Ohms, resolution 0.02 Ohms)
1.001 - 9.999 Ohms (+/- 1.5% +/- 0.1 Ohms, resolution 0.02 Ohms)
10.00 - 50.00 Ohms (+/- 2.0% +/- 0.3 Ohms, resolution 0.04 Ohms)
10.01 - 99.99 Ohms (+/- 2.0% +/- 0.5 Ohms, resolution 0.04 Ohms)
100.0 - 200.0 Ohms (+/- 3.0% +/- 1.0 Ohms, resolution 0.4 Ohms)
200.1 - 400.0 Ohms (+/- 5.0% +/- 5 Ohms, resolution 2 Ohms)
400.0 - 600.0 Ohms (+/- 10% +/- 10 Ohms, resolution 5 Ohms)
600.1 - 1500 Ohms (+/- 20%, resolution 20 Ohms) |
|
TRMS Ground / Leakage Current:
|
0.200 - 1.000 mA (+/- 2.0% +/- 0.05 mA)
1.00 - 10.00 mA (+/- 2.0% +/- 0.03 mA)
10.0 - 100.0 mA (+/- 2.0% +/- 0.3 mA)
100 - 1000 mA (+/- 2.0% +/- 3 mA)
0.200 – 4.000 A (+/- 2.0% +/- 0.03 A)
4.00 – 30.00 A (+/- 3.0% +/- 0.03 A) |
|
Our Price: Starting at $68.00
