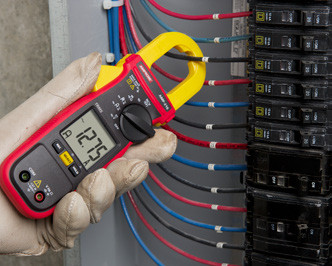

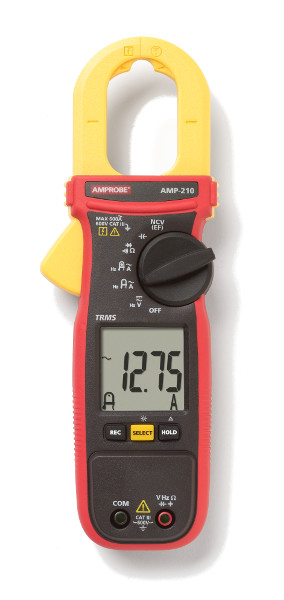

Amprobe AMP-210 600A AC TRMS Clamp Meter
|
Item Number: AMP-210
Manufacturer: Amprobe
Part Number: AMP-210
* Whole number only
|
|
Amprobe AMP-210 600A AC TRMS Clamp Meter
With True-RMS sensing, non-contact voltage detection, a rapid response processor, resistance, continuity and capacitance measurements, its efficiency and safety are both widely enhanced in today’s multifaceted electrical environments. Its Amp-Tip functions provide precise measurement of current down to the tenth of an Amp, performing accurate current measurement of large and small diameter wires.
Features
- Measures AC Current to 600 A and AC/DC Voltage to 600 V
- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip delivers precise low AC current measurements – 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
- Capacitance measurement, continuity beeper and diode test
- Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
- Offers data hold and relative zero for quick analysis
- Maximizes battery life with auto power off and low battery indicator
- Backlit display for easy measurement viewing in bright and dim environments
- Accommodates conductors up to 1.18 in (30mm)
- Includes test leads, batteries (installed), carrying case, and user manual
- CAT III 600 V safety rated
Applications

- Accurate measurement of current, voltage and frequency on all electrical systems including distorted, non-sinusoidal signals (True-RMS function) and variable frequency drives (low-pass filter).
- Capacitance measurement for start and run motor capacitors.
- Resistance and continuity functions to verify quality of electrical connections and to check if motor and transformer coils are working properly.
- Low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency). Without this feature, the meter would provide erroneous readings when measuring voltage and current.
Technical Specifications
|
Model
|
AMP-210
|
AMP-220
|
|
|
AC Clamp Meter
Electrical
|
AC/DC Clamp Meter
Electrical
|
|
Safety Rating
|
CAT III 600 V
|
CAT III 600 V
|
|
Jaw Opening
|
1.18 in (30 mm)
|
1.37 in (35 mm)
|
|
AC Voltage
(True-RMS)
|
Range: 0 to 600.0 V
Accuracy: ±1.0% + 5LSD (50 to 60 Hz)
|
|
DC Voltage
|
Range: 0 to 600.0 V
Accuracy: ±1.0% + 5LSD
|
|
AC+DC Voltage
|
–
|
Range: 0 to 600.0 V
Accuracy: 1.2% ±7LSD (DC,
50 to 60 Hz)
|
|
AC Current
(True-RMS)
|
Range: 0 to 600.0 A
Accuracy: ±1.8% + 5LSD (50 to 100 Hz)
±2.0% + 5LSD (100 to 400 Hz)
|
|
DC Current
|
–
|
Range: 0 to 600.0 A
Accuracy: ±2.0% + 5LSD
|
|
AC+DC Current
|
–
|
Range: 0 to 600.0 A
Accuracy: ±2.2% + 7LSD
(DC, 50 to 100 Hz)
±2.7% + 7LSD (100 to 400 Hz)
|
|
Precise Low
Current AC
|
Range: 0 to 60.00 A
Accuracy: ±1.5% + 5LSD (50 to 60 Hz)
|
|
Precise Low
Current DC
|
–
|
Range: 0 to 60.00 A
Accuracy: ±2.0% + 5LSD
|
|
Precise Low
Current AC+DC
|
–
|
Range: 0 to 60.00 A
Accuracy: ±2.0% + 5LSD
(DC, 50 to 60 Hz)
|
|
Frequency
|
Range: 5.00 to 999.9 Hz
Accuracy: ±1.0% + 5LSD (600 V range)
Range: 50.0 to 400.0 Hz
Accuracy: ±1.0% + 5LSD (600 A range)
|
|
Resistance
|
Range: 0.0 to 60.00 kΩ
Accuracy: ±1.0% + 5LSD
|
|
Capacitance
|
Range: 0.0 to 2500 µF
Accuracy: ±2.0% + 4LSD
|
|
Continuity
Beeper
|
ON ≤ 10 Ω
OFF > 250 Ω
|
|
Non-Contact
Voltage
|
20 to 440 V, 50/60 Hz
|
|
True-RMS
|
•
|
•
|
|
Low Pass Filter
|
•
|
•
|
|
Autoranging
|
•
|
•
|
|
Relative Zero
|
•
|
•
|
|
MAX/MIN/AVG
|
•
|
•
|
|
Diode Test
|
•
|
•
|
|
Data Hold
|
•
|
•
|
|
Backlight
|
•
|
•
|
|
Auto Power Off
|
•
|
•
|
|
Model
|
AMP-210
|
AMP-220
|
|
Display
|
3-5/6 digits 6000 counts
|
3-5/6 digits 6000 counts
|
|
Polarity
|
Automatic
|
Automatic
|
|
Update Rate
|
5 per second nominal
|
5 per second nominal
|
|
Operating
Temperature
|
32 to 104°F (0 to 40°C)
|
32 to 104°F (0 to 40°C)
|
|
Relative Humidity
|
80% at 30°C, 50% at 40°C
|
80% at 30°C, 50% at 40°C
|
|
Operating Altitude
|
0 to 2000 m
|
0 to 2000 m
|
|
Pollution Degree
|
2
|
2
|
|
Storage
Temperature
|
-4 to 140°F (-20°C to 60°C),
< 80% RH
|
-4 to 140°F (-20°C to 60°C),
< 80% RH
|
|
Temperature
Coefficient
|
Nominal 0.15 x (specified accuracy)/ °C @ (0°C to 18°C or 28°C to 40°C)
|
Nominal 0.15 x (specified accuracy)/ °C @ (0°C to 18°C or 28°C to 40°C)
|
|
Battery
|
Two AAA 1.5 V battery
|
Two AAA 1.5 V battery
|
|
EMC
|
Meets EN 61326-1:2006
|
Meets EN 61326-1:2006
|
|
Safety
Compliance
|
UL/IEC/EN 61010-1 ed. 3.0, IEC/EN 61010-2-033 ed. 1.0, CAN/CSA C22.2 NO. 61010-1 ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031 ed. 1.1
|
UL/IEC/EN 61010-1 ed. 3.0, IEC/EN 61010-2-033 ed. 1.0, CAN/CSA C22.2 NO. 61010-1 ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031 ed. 1.1
|
|
Certification
|
UL (c/us) and CE
|
UL (c/us) and CE
|
|
Dimensions
(L x W x H):
|
8.62 x 3.03 x 1.46 in
(219 x 77 x 37 mm)
|
8.82 x 3.03 x 1.46 in
(224 x 77 x 37 mm)
|
|
Weight:
|
208 g (0.46 lb)
|
254 g (0.56 lb)
|
|
Accessories Included:
|
|
User’s Manual
|
•
|
•
|
|
Test Leads
|
•
|
•
|
|
Carrying Case
|
•
|
•
|
|
Batteries
|
AAA (2)
|
|
Alligator Clip Set
|
–
|
–
|
|
Banana plug K-type
Thermocouple
|
–
|
–
|
|
The Amprobe AMP-220 is a True-RMS that has voltage up to 600 V AC/DC and current up to 600 A AC/DC.
| |
