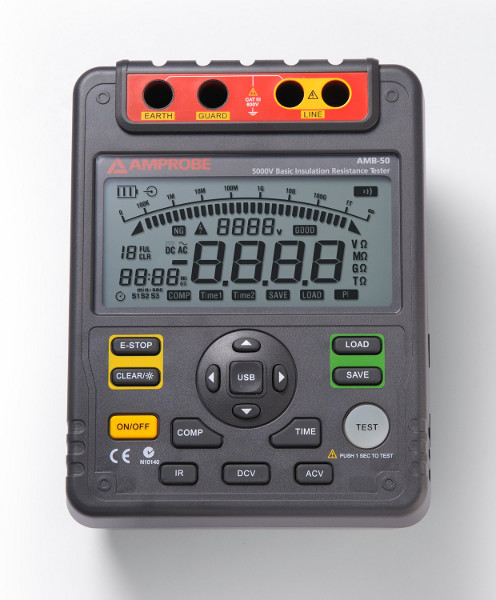

Amprobe AMB-50 Industrial High-Voltage Insulation Tester

Amprobe AMB-50 High-Voltage Insulation Tester has the necessary features for professional insulation diagnostics. It features calculation of PI, and DAR parameters. The pass/fail comparison function helps to improve testing productivity. Readings areclearly displayed on a large backlit LCD display. Windows compatible PC Software and USB communications port serve for connecting the instrument to the PC and management of the recorded test data.

• Test insulation of wires, cables, transformers, motors, surge arrestors and generators
• Selectable testing voltages - one testing instrument for low and high voltage systems from 500/1000/2500 and 5000V
• Insulation resistance measurement up to 1T Ω
• User selectable programmable timer (10s to 30 min)
• Automatic discharge of test object after completion of measurement
• Diagnostic tools
• Polarization index (PI)
• Dielectric absorption ratio (DAR)
• Comparison feature to set pass/fail thresholds for quick measurement and verification
• Dual power source – receptacle or batteries
• Built in internal memory storing 18 measurements
• Comes as a complete kit: power adapter, software, USB interface cable, hard carrying case, batteries, complete set of test leads, and instruction manual
• CAT III 600V

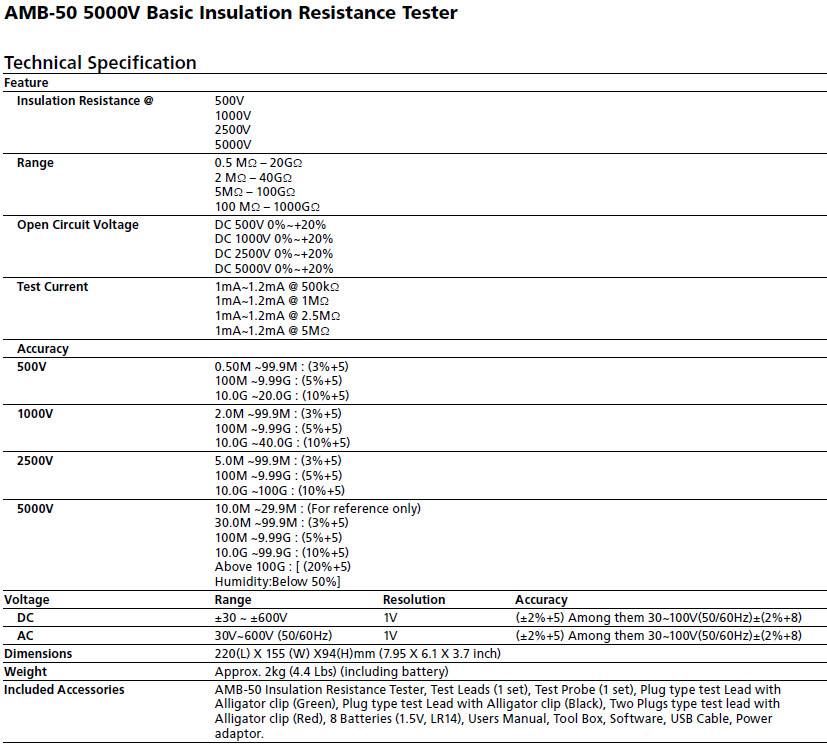

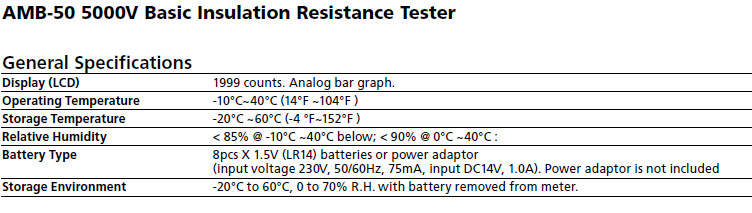

Technical Specifications

Amprobe AMB-50 Data Sheet
