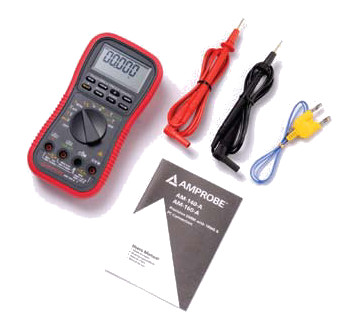

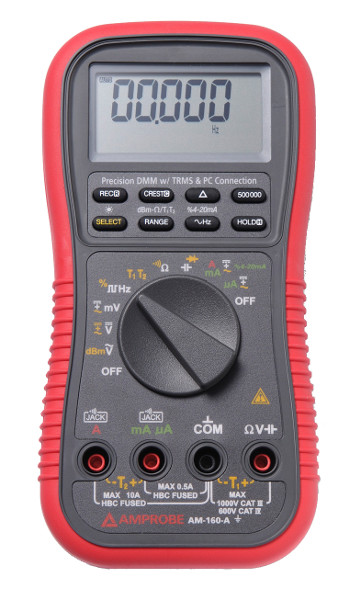

Amprobe AM-160-A True-rms Precision Multimeter with Temperature

The Amprobe AM-160-A offers more features and better accuracy at a great price. Precise true-rms, accuracy to 0.02%, frequency, capacitance, duty cycle, temperature, analog bar graph, PC interface and large backlit displays are just a handful of features that are available on this precision multimeter.

• True-rms
• Precision accuracy to 0.02%
• Measurements: voltage up to 1000V AC/DC, resistance, AC/DC current, frequency, capacitance, duty cycle
• Dual temperature
• Optical isolated PC interface capability
• Crest (peak hold), max, man max-min recording
• Auto and manual ranging
• Intelligent auto power off
• Data hold
• Relative zero mode
• Audible and visual warning against improper plug-in
• DC loop current 4-20mA
• dBm reading with 20 selectable impedance values
• Backlight display
• Large, easy to read large LCD display
• High speed analog bar graph
• Diode test
• 4-20mA DC loop current
• Audible continuity

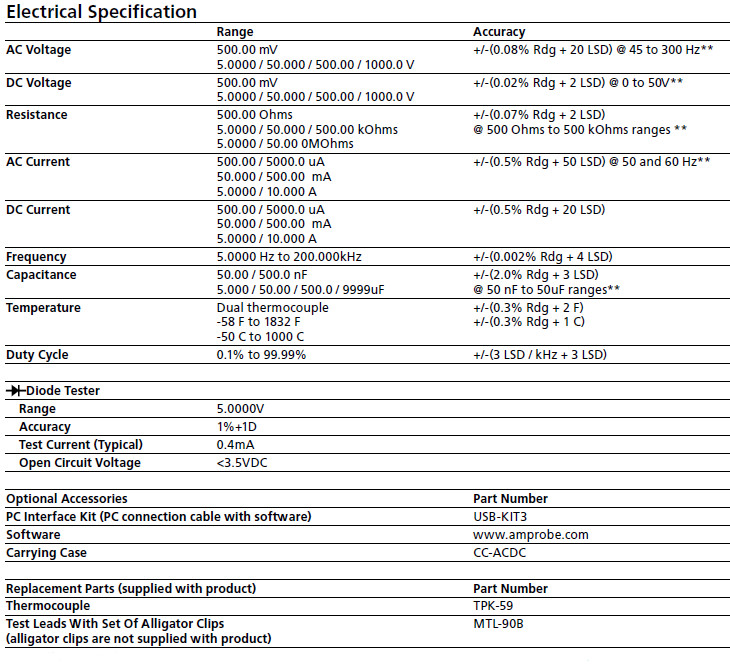

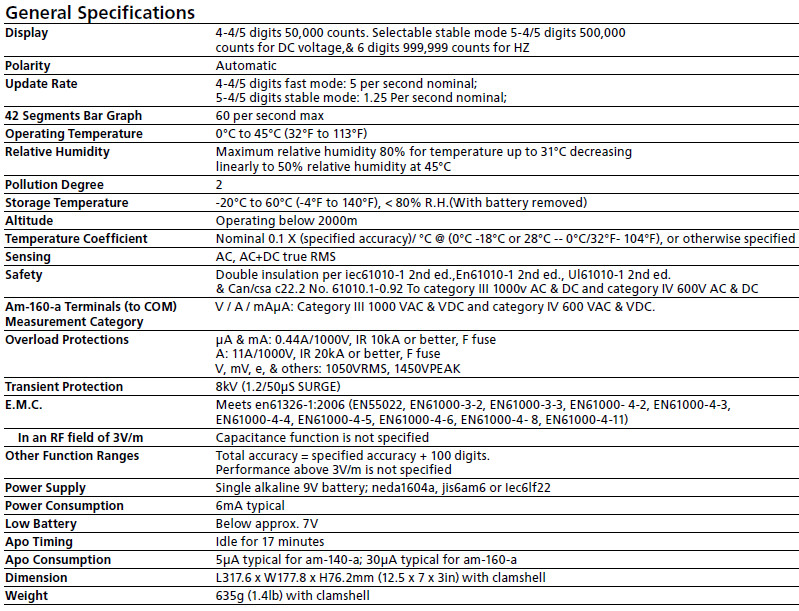

Technical Specifications

Amprobe AM-160-A Data Sheet
