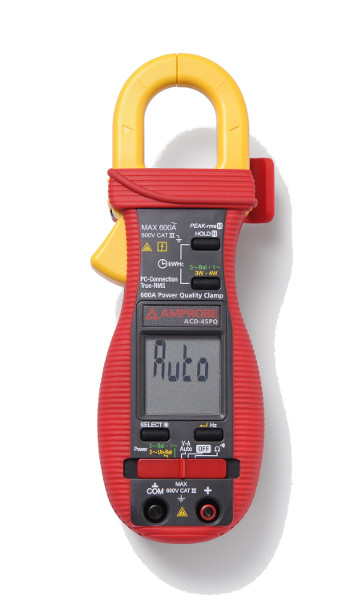

Amprobe ACD-45PQ 600A Power Quality Clamp with True-rms

The Amprobe ACD-45PQ is a compact digital clamp meter capable of measuring power, energy and power factor on a single and three-phase systems (balanced and unbalanced). Ultra-slim jaw design allows the user to clamp around conductors in confined and difficult to reach places. This digital clamp meter is also true-rms sensing takes reliable AC/DC voltages measurements up to 600V.

• True-rms sensing
• Ultra slim jaws accommodate conductors up to 1.02 (26mm) in diameter
• Measurements: AC/DC Vvoltage up to 600V, AC current up to 600A, resistance, frequency power: active (W), reactive (VAR) and apparent (VA) power with dual-display power factor readout, KWh recording
• AutoVA - auto selection of AC volts, DC volts or AC amps
• 3 phase unbalanced load measurement – calculation of the discrete single phase measurements
• Optional PC interface capability (RS-232 KIT2)
• Audible continuity
• Large, easy to read LCD display with backlight
• Auto power off
• Low battery indication
• Peak hold
• Data hold
• Carrying case, test leads, batteries (installed), and manual included
• Voltage overload protection for all functions up to 600V AC/DC

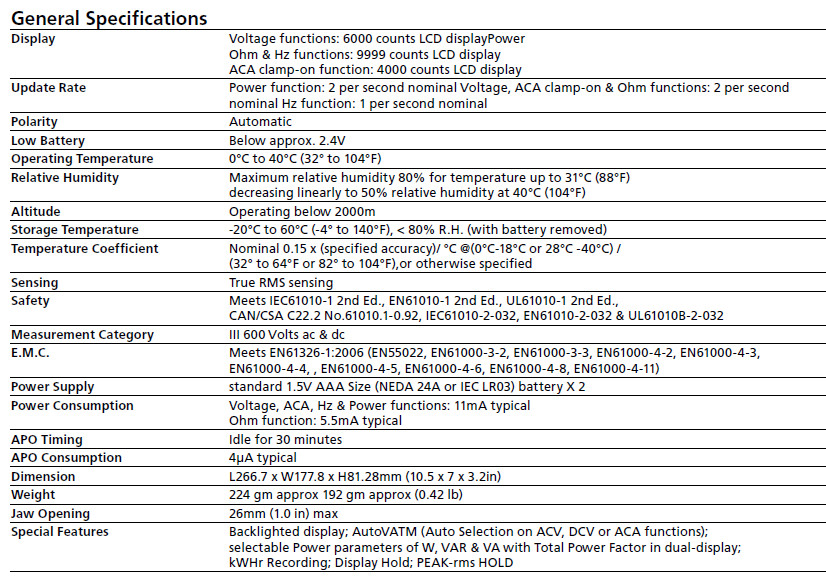

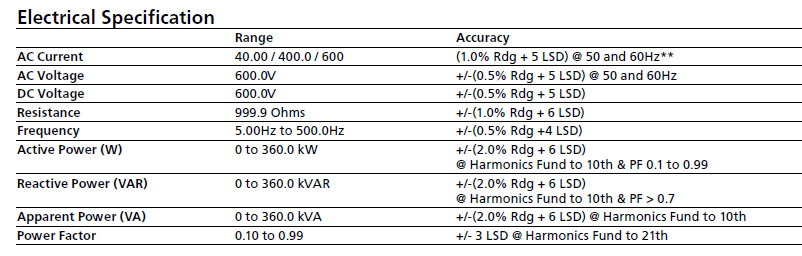

Technical Specifications

Amprobe ACD-45PQ Data Sheet
