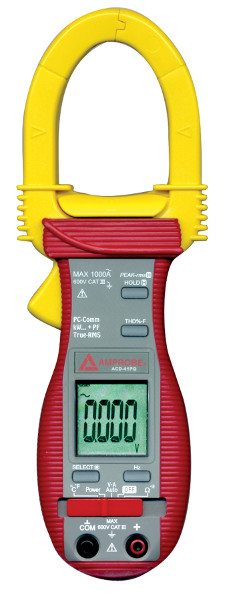

Amprobe ACD-41PQ 1000A Power Quality Clamp Meter with Temperature
|
Item Number: ACD-41PQ
Manufacturer: Amprobe
Part Number: ACD-41PQ
* Whole number only
|
|
Amprobe ACD-41PQ 1000A Power Quality Clamp Meter with Temperature
The Amprobe ACD-40 provides a simple and effective way to verify if the electrical system is affected by harmonics. Add on troubleshooting capabilities with the ACD-40PQ data-logging feature or get complete power analysis with the ACD-41PQ. Increase measuring efficiency with an optional PC interface kit.
THD-F is defined as: (Total Harmonic RMS / Fundamental RMS) x 100%
Features
- True-rms sensing measures active (W), reactive (VAR) and apparent (VA) power with dual-display power factor readout
- Total harmonics distortion (THD), AC/DC voltage up to 600V, AC current up to 1000A, resistance, frequency, temperature
- Peak hold
- Optional PC interface capability (RS-232 KIT2)
- Audible continuity
- Auto power off
- Automatic polarity
- Low battery indication
- Data hold
- Large, easy to read LCD display with backlight
- Accommodates conductors up to 1.77 (45mm) in diameter
- Carrying case, test leads, batteries (installed), thermocouple and manual included
- Voltage overload protection for all functions up to 600V AC/DC
Technical Specifications
| Specifications |
| TRMS: |
YES |
| AC Current: |
40.0 / 400.0 / 1000 A |
| AC Current Basic Accuracy: |
+/-(1.0% Rdg + 5 LSD) @ 50 and 60Hz |
| DC Voltage: |
600.0V |
| DC Voltage Basic Accuracy: |
+/-(0.5% Rdg + 5 LSD) |
| AC Voltage: |
600.0V |
| AC Voltage Basic Accuracy: |
+/-(0.5% Rdg + 5 LSD) @ 50 / 60 Hz |
| Resistance: |
999.9O |
| Resistance Basic Accuracy: |
+/-(1.0% Rdg + 6 LSD) |
| Frequency: |
5.00Hz to 500.0Hz |
| Frequency Basic Accuracy: |
+/-(0.5% Rdg +4 LSD) |
| THD-F *: |
0.0% to 99.9% |
| THD-F * Basic Accuracy**: |
1.5% of Reading + 6d @ Fund Frequency |
| Active Power (W): |
0 to 600.0 kW |
| Active Power (W) Basic Accuracy: |
+/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th & PF > 0.7 |
| Reactive Power (VAR): |
0 to 600.0 kVAR |
| Reactive Power (VAR) Basic Accuracy: |
+/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th & PF > 0.7 |
| Apparent Power (VA): |
0 to 600.0 kVA |
| Apparent Power (VA) Basic Accuracy: |
+/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th |
| Power Factor: |
0.10 to 0.99 |
| Power Factor Basic Accuracy: |
+/- 3 LSD @ Harmonics Fund to 21th |
| Temperature: |
-58°F to 572° F (-50° C to 300° C) |
| Temperature Basic Accuracy: |
+/-(2.0% Rdg + 6°F) +/-(2.0 % Rdg + 3°C) |
|
