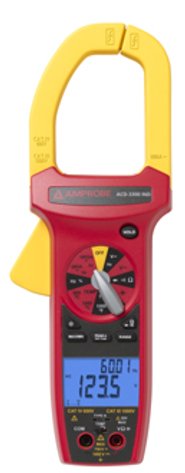

Amprobe ACD-3300 IND CAT IV Industrial True RMS Clamp Meter

Our Price: $274.95

Item Number: ACD-3300 IND

Manufacturer: Amprobe

Part Number: ACD-3300 IND

* denotes required field

Calibration Options*

Calibration Certificate not included

Standard Calibration Certificate (+ $65.00)

ISO 17025 Accredited Calibration Services (1000 AC/DC Amps maximum) (+ $95.00)

Quantity:

Amprobe ACD-3300 IND CAT IV Industrial True RMS Clamp Meter

Amprobe ACD-3300 Features:

TRMS
Measures AC Current up to 1000 ACA, Voltage up to 750 VAC / 1000 VDC,
Frequency, Resistance and Capacitance and Duty Cycle
Temperature to 1832°F or 1000℃
Peak Hold
Audible continuity
Auto and manual ranging
Auto power off
Data hold
Backlight
Diode Test
Duty Cycle
Bar-graph
Accommodates conductors up to 2" (51mm) in diameter
Safety CAT IV 600 V, CAT III 1000 V

Amprobe ACD-3300 Specifications:

DC Volts Ranges:	660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
Accuracy:	± (0.5% rdg + 2 dgts)
Input Impedance:	660 mV: >100 MΩ; 6.6 V:10 MΩ; 66 V to 1000 V: 9.1 MΩ
Overload protection:	1000 VDC or 750 VAC rms
AC Volts True RMS Range:	660.0 mV Frequency 50 to 100 Hz
Accuracy:	± (1.5% rdg + 8 dgts)
AC Volts True RMS Range:	6.600V, 66.00V Frequency 50 to 500 Hz
Accuracy:	± (1.5% rdg + 8 dgts)
AC Volts True RMS Range:	660.0V, 750V Frequency 50 to 500 Hz
Accuracy:	± (1.5% rdg + 8 dgts)
Frequency:†	50 to 1 kHz +/- (0.1% rdg + 5 dgts)
AC coupled TRMS:	5% to 100% of range
Overload Protection:	1000 VDC or 750 VAC rms
Power:	Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Jaw Opening Capability:	57 mm (2.0 in) conductor
†Frequency: 10% to 100% of voltage range

Amprobe ACD-3300 Includes:
