Amprobe ACD-22SW True-rms Swivel Clamp Meter
|
Item Number: ACD-22SW
Manufacturer: Amprobe
Part Number: ACD-22SW
* Whole number only
|
|
Amprobe ACD-22SW True-rms Swivel Clamp Meter
Amprobe’s new ACD-22SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places.
Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature rich, measuring AC/DC currents, voltage, resistance and capacitance as well as CAT III 600V safety ratings make this clamp on meter something you should swivel to see.
Features
- TRMS Measurement
- 180 degree rotating head for the perfect display viewing
- Advanced VoltTect non-contact voltage detection
- Slim jaw design with one hand operation
- Measures AC Current up to 400 ACA, AC/DC Voltage up to 600V, Resistance and Capacitance
- Audible continuity
- Auto and manual ranging respectively for quick checks and precise measurements
- Backlight
- Auto power off
- Data hold
- Accommodates conductors up to 1.18” (30mm) in diameter
- Safety CAT III 600 V
|
 |

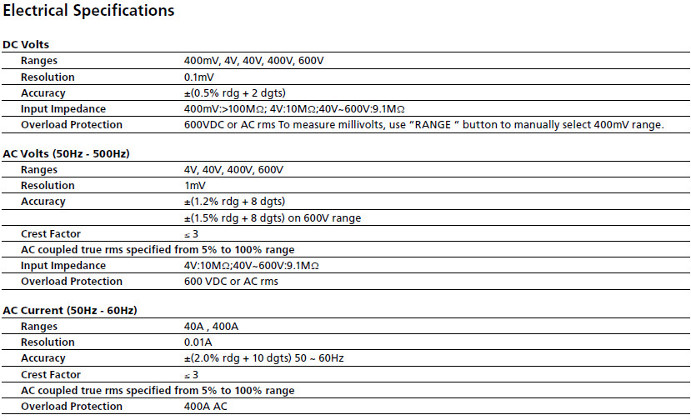

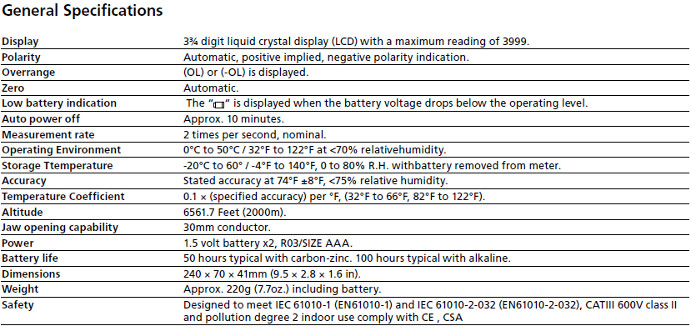

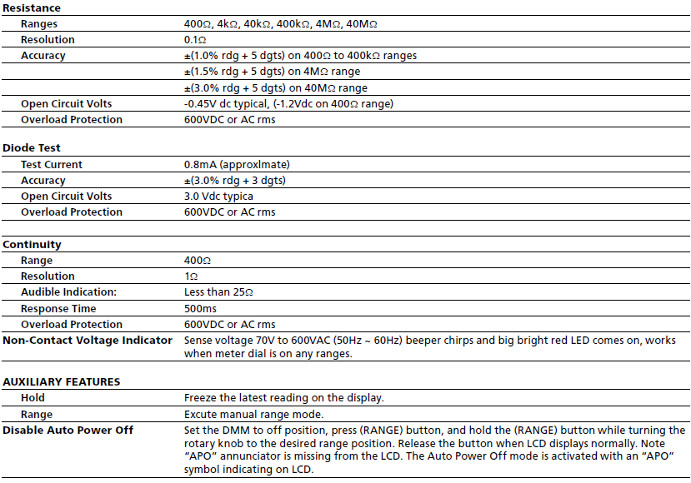

Technical Specifications

Includes
- One pair test leads
- 1.5V battery x2 (installed)
- Carrying case
- TPK01 thermocouple
- Users Manual
|
The Amprobe ACD-20SW's rotating head clamp design allows easy viewing of the measurements in tight or inconvenient to reach places. Simply rotate the body of meter to get an unobstructed view of the LCD display. Measures up to 400 Amps AC or 600 V.
|
The Amprobe ACD-21SW's new patented rotating head clamp design allows easy viewing of the measurements in tight or inconvenient to reach places. Simply rotate the body of meter to get an unobstructed view of the LCD display.
|

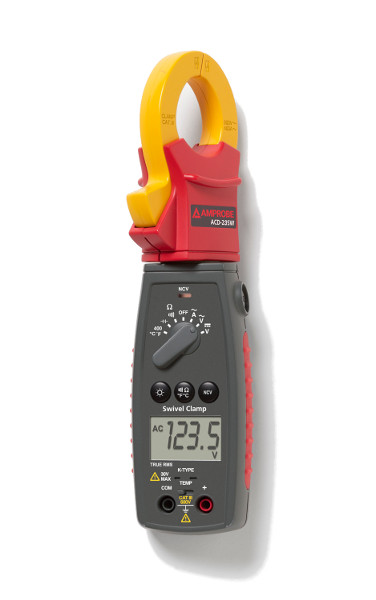

Amprobe ACD-23SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places. Temperature: -30 °F →400 °F
| |
