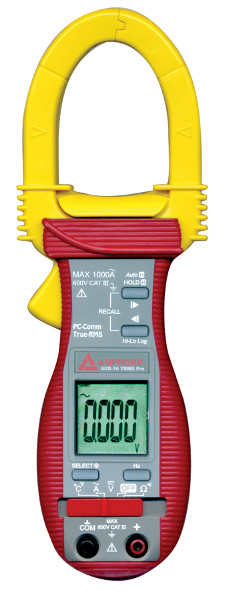

Amprobe ACD-16 TRMS-PRO 1000A Data Logging Clamp Meter with Temperature

The ACD-16 TRMS PRO provides a full range of measurements, enhanced with data logging capabilities, to catch what the eye can’t see. Double the efficiency, with an optional PC interface kit.

• True-rms and backlight screen
• Measurements: AC/DC voltage up to 600V, AC current up to 1000A, resistance, frequency and temperature
• Data-logging 5400 points
• Optional PC interface capability (RS-232 KIT2)
• Audible continuity
• Auto power off
• Automatic polarity
• Low battery indication
• Data hold
• Large, easy to read LCD display
• Accommodates conductors up to 1.77 (45mm) in diameter
• Carrying case, thermocouple, test leads, batteries (installed) and user manual included
• Voltage overload protection for all functions up to 600V AC/DC

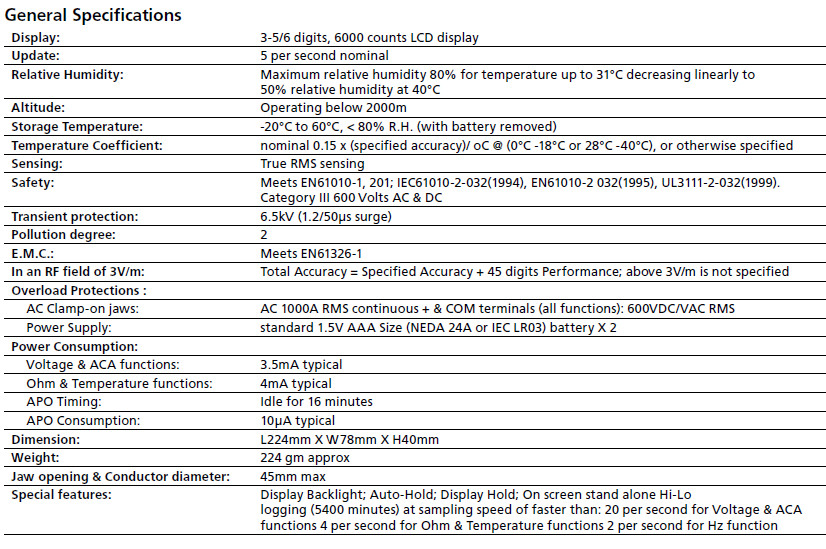

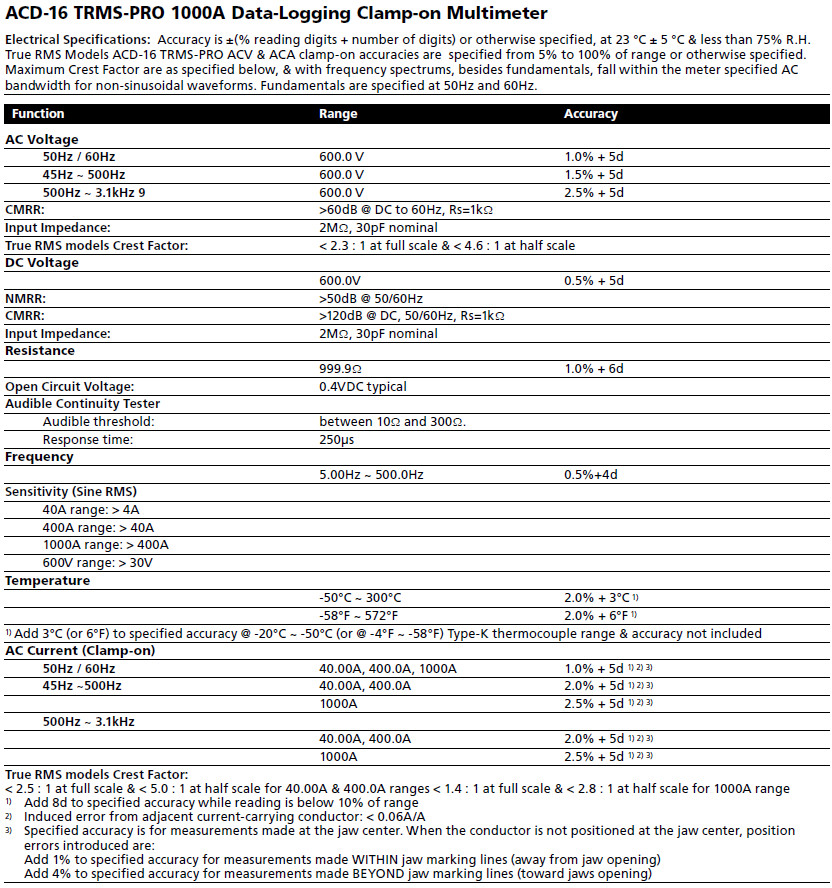

Technical Specifications




Included Accessories

Amprobe ACD-16 TRMS-PRO Data Sheet
