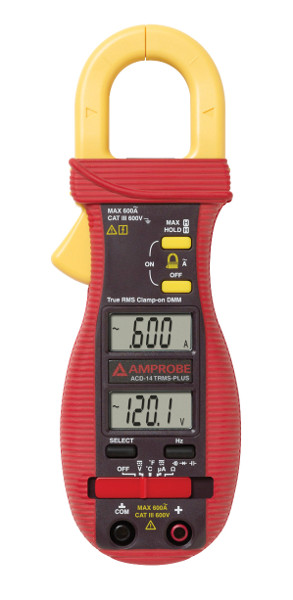

Amprobe ACD-14 TRMS-PLUS Dual Display Digital Clamp Multimeter

The Amprobe ACD-14 TRMS-PLUS Digital Clamp Multimeter is the perfect choice for HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance, frequency and true-rms accuracy. This digital clamp multimeter provides added functionality with a dual display for views of amperage and voltage simultaneously.

• Dual displays – permits simultaneous reading of amperage and voltage
• True-rms for precise measurement results
• New thin jaws, 5mm thinner than others to access tight measurement spaces
• Micro Amps measurement for testing flame sensors
• Capacitance to 3000 µF
• Temperature with K-type thermocouple probe
• AC and DC Voltage to 600V
• Resistance to 40MΩ
• AC Current to 600A
• Frequency measurement
• Diode test and continuity buzzer
• Hold and maximum reading functions
• In rush current
• Accommodates conductors up to 28 mm (1.1) in diameter
• Auto ranging
• Auto power off and low battery indication
• Rubber over-molded case

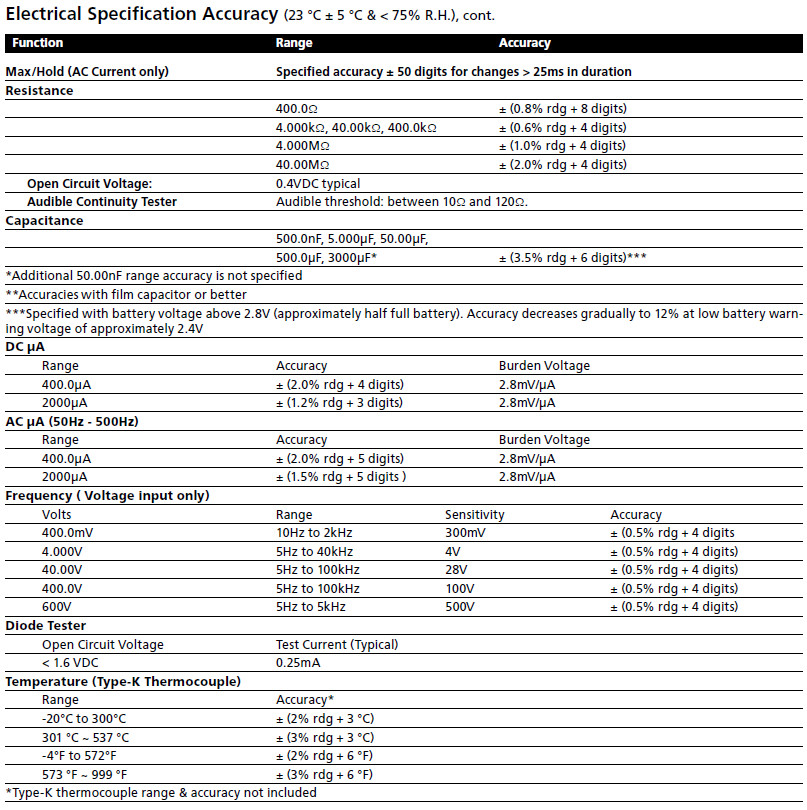

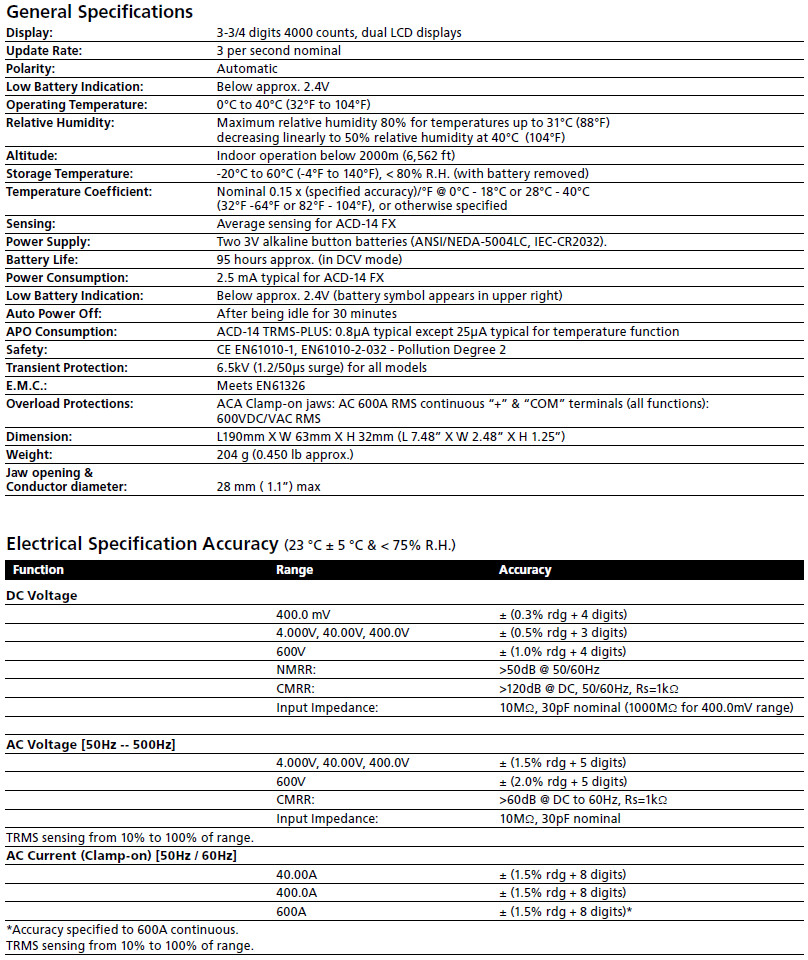

Technical Specifications

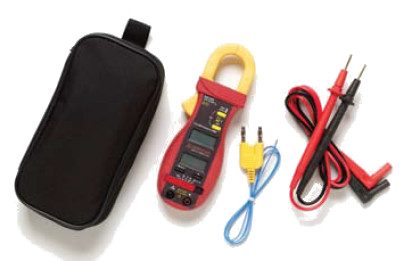

Included Accessories
Test Leads, Carrying Case, Bead Type-K Thermocouple with
banana plug, Users Manual

Amprobe ACD-14 TRMS-PLUS Data Sheet
