Amprobe ACD-14 Plus Clamp-On Multimeter
|
Item Number: ACD-14 PLUS
Manufacturer: Amprobe
Part Number: ACD-14 PLUS
Product Options
* denotes required field
Amprobe ACD-14 Model Selection*
Calibration Certification Option Clamp On Meter
* Whole number only
|
|

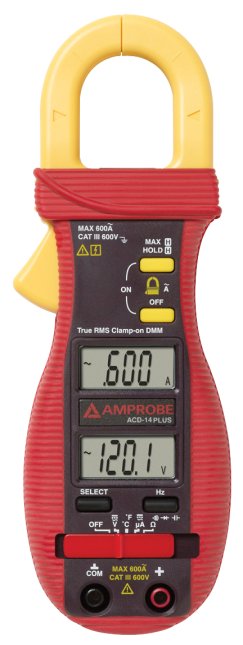

Amprobe ACD-14 Plus Clamp-On Multimeter
Its dual displays allows viewing amperage and voltage simultaneously. The ACD-14 PLUS meter offers thinner jaws over standard clamp meters. Allowing access to tight measurement areas and still accommodating conductors up to 28 mm. Both meters also measure Capacitance and Frequency. Very versatile clamp multimeters to support all your daily measurement needs.
Features:
-
Dual Displays – Permits simultaneous reading of Amperage & Voltage
-
AC Current to 600A
-
New thin jaws, 5mm thinner than others to access tight measurement spaces
-
Micro Amps measurement for testing Flame Sensors
-
Capacitance to 3000 µF
-
Temperature with Type-K Thermocouple probe
-
AC and DC Voltage to 600V
-
Resistance to 40MΩ
-
Continuity Buzzer
-
Frequency measurement
-
Diode test
-
Hold and Maximum reading functions
-
In rush current
-
Accommodates conductors up to 28 mm (1.1”) in diameter
-
Auto ranging
-
Auto power off and low battery indication
-
Rubber over-molded case
Technical Specifications
| Display |
3-3/4 digits 4000 counts, dual LCD displays
|
| Update Rate |
3 per second nominal |
| Polarity |
Automatic |
| Low Battery Indication |
0°C to 40°C (32°F to 104°F) |
| Power Supply |
Two 3V alkaline button batteries |
| Battery Life |
95 hours approx. (in DCV mode) |
| Size |
L 190mm X W 63mm X 32mm (L 7.48" x W 2.48" X H 1.25") |
| Weight |
204 g (0.450 lb approx) |
|
