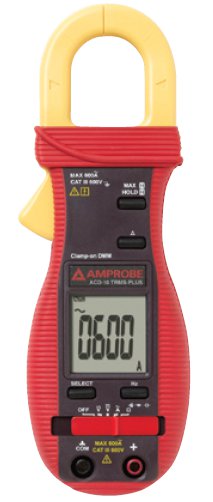

Amprobe ACD-10-TRMS-Plus 600 Amp Digital Clamp-On Meter

Amprobe ACD-10-TRMS-PLUS 600 Amp Digital Clamp-On Meter

Amprobe’s ACD-10 TRMS-PLUS meter offer thinner jaws over standard clamp meters. Allowing access to tight measurement areas and still accommodating conductors up to 25 mm. Both meters also measure Capacitance and Frequency. Frequency is measured by either jaws or test leads. Very versatile clamp multimeters. True RMS version for noisy measurement environments for a more accurate reading.

Features:

• AC & DC Voltage to 600V
• AC Current to 600A
• Thin jaws, only 10mm (0.4) thick
• Resistance to 40MΩ
• Continuity buzzer
• Capacitance to 3000 uF
• Frequency measurement
• In rush current
• Hold & maximum reading functions
• Accommodates conductors up to 26mm (1.02) in diameter
• Auto ranging
• Auto power off
• Rubber over-molded case
• Overload protected
• True-rms measurement
