Amprobe ACD-10-Plus 600 Amp Digital Clamp-On Meter

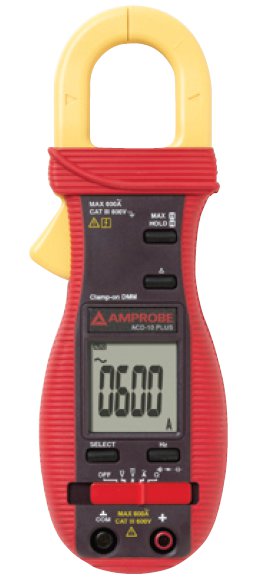

Amprobe ACD-10-PLUS Digital Clamp-On Meter

Amprobe’s ACD-10 PLUS meter offers thinner jaws over standard clamp meters. Allowing access to tight measurement areas and still accommodating conductors up to 25 mm. It also measures Capacitance and Frequency. Frequency is measured by either jaws or test leads. Very versatile clamp multimeter.

Features:

• AC & DC voltage to 600V
• AC Current to 600A
• Thin jaws, only 10mm (0.4) thick
• Resistance to 40MΩ
• Continuity buzzer
• Capacitance to 3000 uF
• Frequency measurement
• In rush current
• Hold & maximum reading functions
• Accommodates conductors up to 26mm (1.02) in diameter
• Auto ranging
• Auto power off
• Rubber over-molded case
• Overload protected
