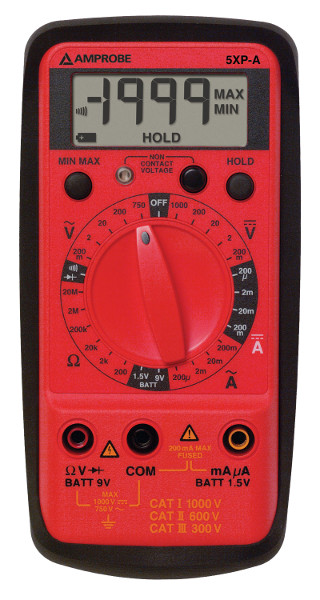

Amprobe 5XP-A AC/DC Compact Digital Multimeter with VolTect

The Amprobe 5XP-A Digital Multimeter provides superior features and accuracy in a smaller form factor. The 5XP-A has unique features such as VolTect™ non-contact voltage detection and our exclusive Magne-Grip™ holster that frees both hands for work. The 5XP-A is the perfect choice for residential, commercial and general troubleshooting applications.

Features

• Display 3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999
• Polarity automatic, positive implied, negative polarity indication
• Overrange (OL) or (-OL) is displayed
• Zero: automatic
• Low battery indication
• Measurement rate 2.5 times per second, nominal
• Operating environment 0 °C to 50 °C at <70 % R.H.
• Storage temperature -20 °C to 60 °C, 0 to 80 % R.H. with battery removed from meter
• Stated accuracy at 23 °C ± 5 °C, <75 % relative humidity
• Temperature coefficient 0.1 x (specified accuracy) per °C (0 °C to 18 °C, 28 °C to 50 °C)
• Altitude 2000 m (6561.7 ft)
• VolTect™ non-contact voltage (NVC) detection

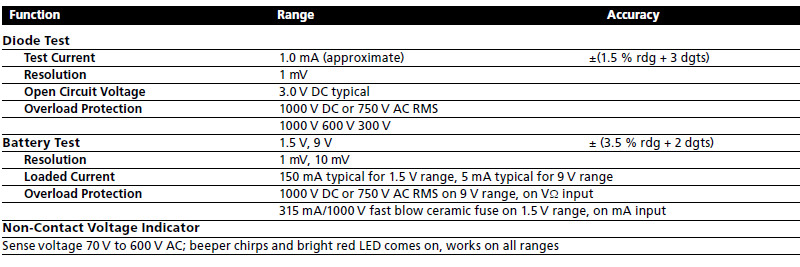

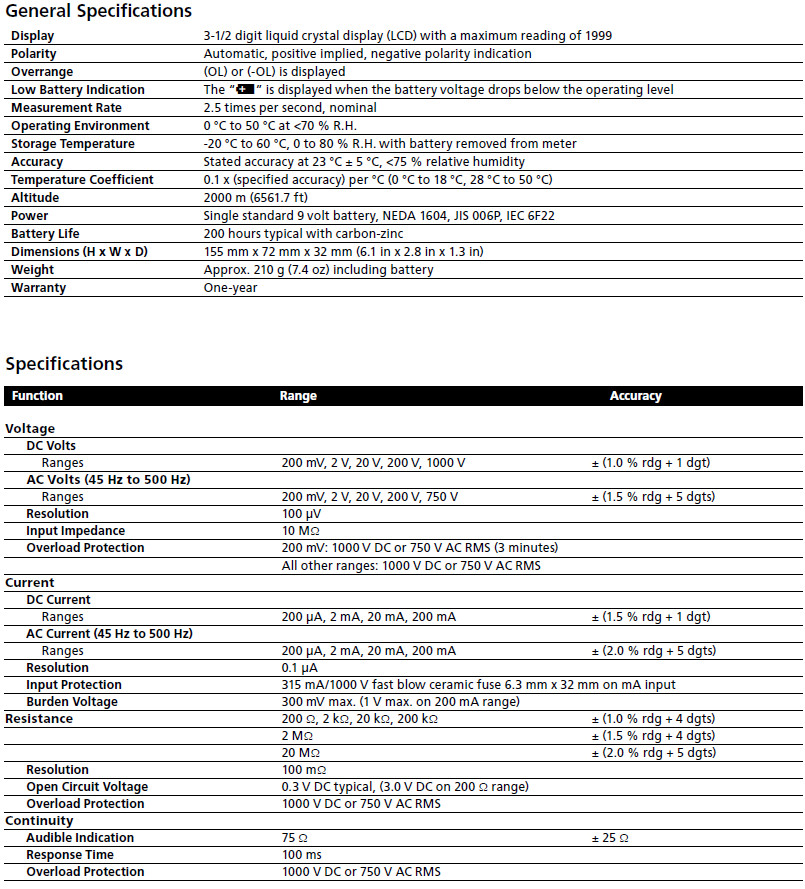

Technical Specifications

Amprobe 5XP-A  Data Sheet
