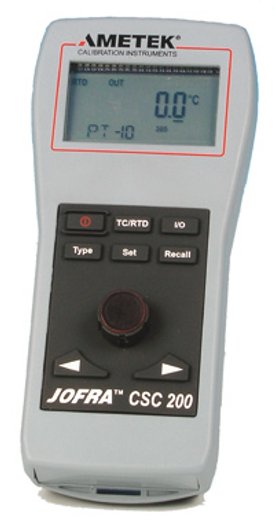

Ametek Jofra CSC200 Compact Signal Calibrator

The JOFRA CSC200 handheld calibrator offers you an easy-tooperate interface including a knob for precise and rapid adjustment. With features including a large display and an auto stepping signal, the CSC200 makes troubleshooting and calibration of your temperature sensors a snap.

The CSC line of signal calibrators are dedicated units designed to make your calibration and maintenance tasks easier to perform. The JOFRA CSC200 is engineered for the calibration of temperature instruments offering the ability to measure and simulate several different types of RTDs and TCs. This instrument makes the job easy by ulitizing a thermocouple plug for easy connection and can work with 2, 3, or 4-wire RTDs.

The CSC200 also offers features such as user-defined setpoints with a recall function, selectable cold junction compensation, and installed curves for 14 RTD and 13 TC types. These handy time savers are combined in a package offering an easy-to-read, two line display and an intuitive keypad with a knob for fine adjustments.

• Input and Output
  RTD: 14 types, TC:13 types
  Resistance: 0 to 4,000 Ω (read)
  5 to 4,000 Ω (source)
  mV: -10 to 75 mV
• High level of protection
  Fuse-less protection for internal circuitry
  - a common cause of failure in other units without this protection
• CJC
  Selectable feature - use with or without cold junction compensation depending on application
• Setpoints
  User-defined - make testing easier by storing the necessary settings for repeated test points and sequences
• High accuracy
  Accuracy up to ±0.2°C / 0.36°F - including programmed curves for easy use in most any application
• Easy connections
  Jacks for 2, 3, or 4-wire RTDs and a dedicated TC plug - allows for connection of sensur-under-test
• Complete marine program
  Part of complete program of marine approved temperature, pressure and signal calibrators; including temperature sensors

CSC200 as TC input with an ITC

The CSC200 is also programmed with the formulas for 13 TC types. Like the RTD modes, the unit will source or read TC sensors and provide a stable and reliable reading. The unit has a convenient TC plug for easy connection to the TCs and is also equipped with CJC: the CJC may be turned off it desired.

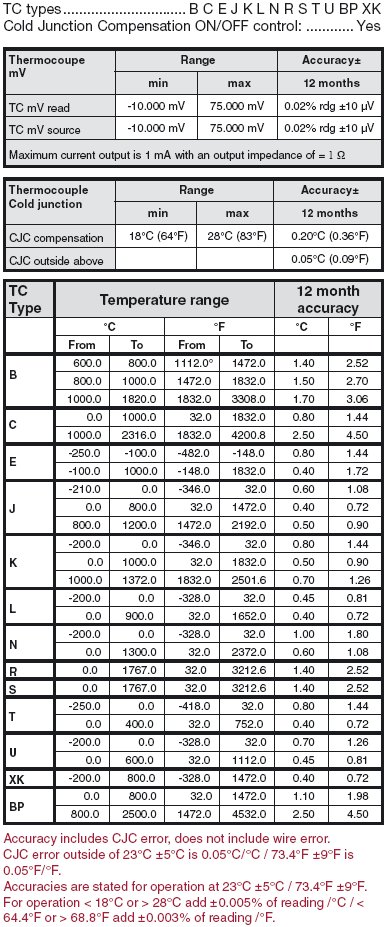

Thermocouple -TC Specifications:

CSC200 as RTD input with an ITC

The CSC200 offers the ability to source and read 14 types of RTDs. The formulas (curves) for the different types of RTDs are programmed into the firmware of this unit. This makes it possible to select the curve maching the sensor and perform the test routine without the need for mathematical conversions. The CSC200 can be used with 2, 3, or 4-wire RTDs making it flexible enough for virtually all RTD calibrations.

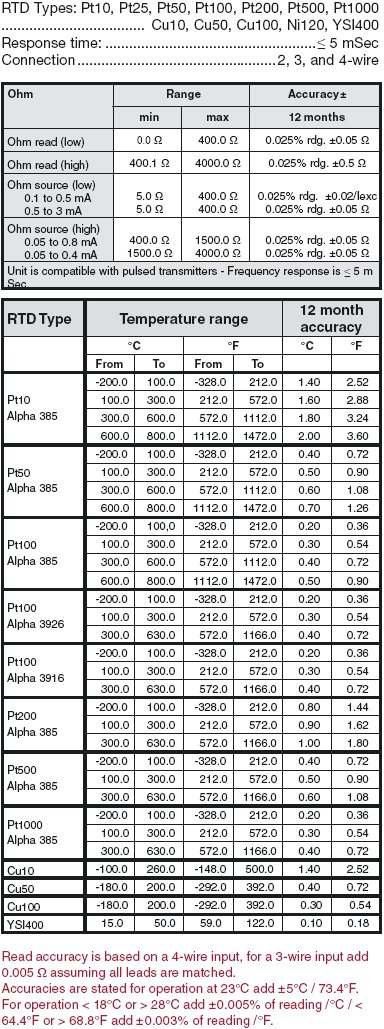

Resistance Temperature Detector - RTD Specifications:

• JOFRA CSC200 loop calibrator
• Traceable calibration certificate
• Reference manual
• Test leads
• Soft carrying case
• Shoulder strap
