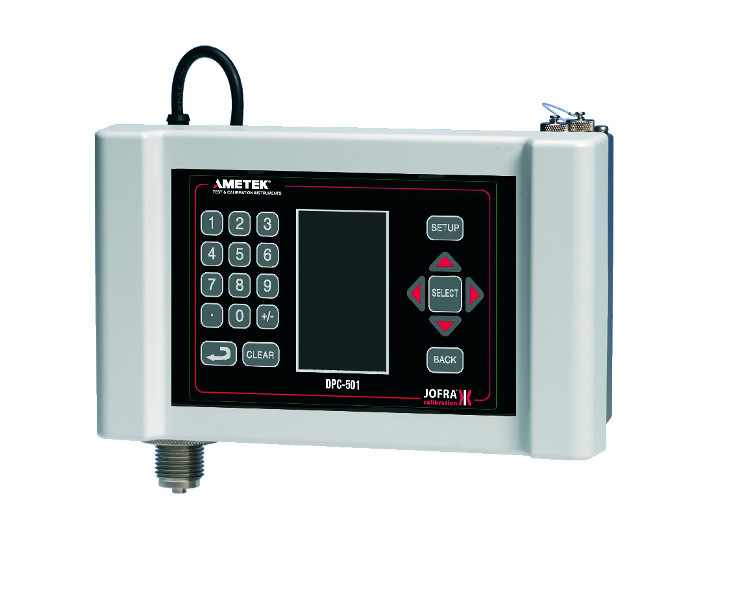

Ametek JOFRA DPC-501 Documenting Pressure Calibrator
Our Price: Discontinued Call for Replacement Options
Item Number: DPC-501
Manufacturer: Ametek (JOFRA)
Part Number: DPC-501
|
|
Ametek JOFRA DPC-501 Documenting Pressure Calibrator
Ametek DPC-501 is a user-friendly, accurate and compact solution for pressure comparison calibrations. The electronic pressure calibrator DPC-501
is used for high-precision calibration of pressure instruments, e.g. pressure gauges, pressure transmitter, digital manometer, pressure switches,
overpressure protection valves, etc. The DPC-501 measures pressure, voltage and current and supplies 24 VDC as source for transmitters.
Calibration procedures can be predefined and used for calibrations on site. The DPC-501 is featured with USB and RS232 interfaces and is powered by a Lithium-Ion battery
(rechargeable without memory-effect).
Features
Up to 1,000 bar / 14,500 psi
Also vacuum and absolute ranges
Down to +/- 0,020% F.S., full temperature
compensation 0 to 50°C
High resolution TFT color display, great over
view and easy to read
Measure pressure, voltage and current, and
supplies 24VDC as source for transmitters
15 different pressure units available, one
additional pressure unit can be defined
- Selectable language user-interface
Choose between English, German, Italian,
French and Spanish
- Easy pressure switch test
Automatically records opening and
closing point values on the display
- External reference sensors
10 reference sensors of different pressure
ranges can be used with the same DPC-501
calibrator
JOFRACAL calibration software makes
documentation easy

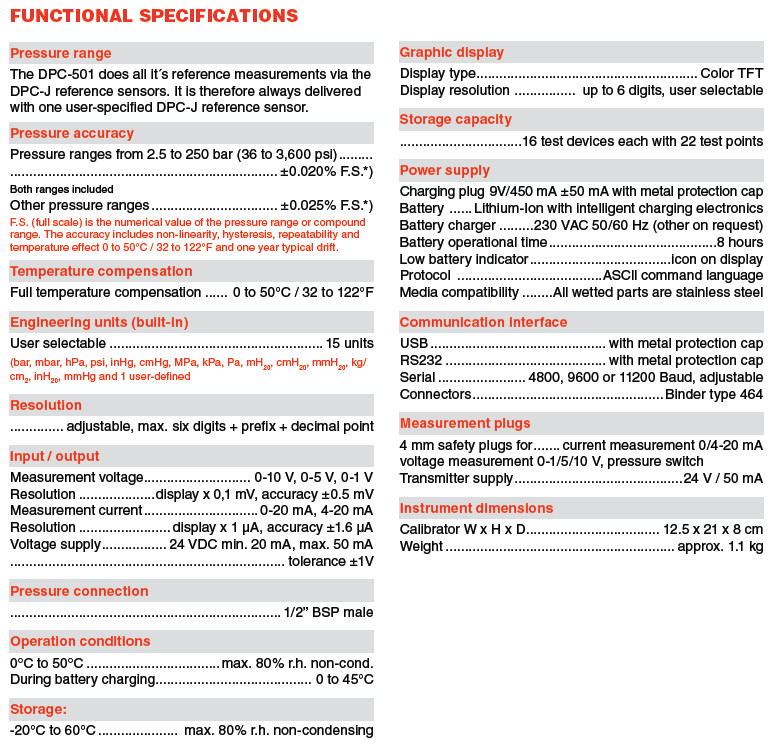

Technical Specifications
|
