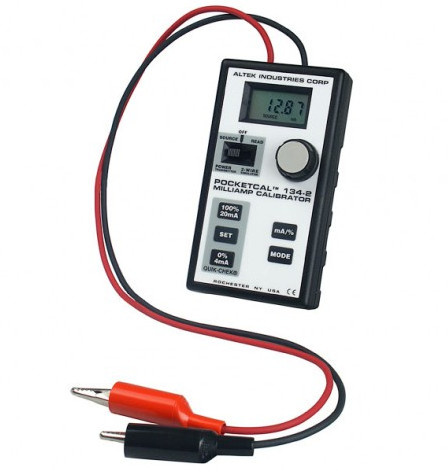

Altek 134-2 PocketCal mA Calibrator

Features

• Basic Milliamp Functions — Source 0.00 to 24.00 mA or -25.0 to 125.0%, read mA or percent to 24.00 mA, simulate 2-wire transmitters, power and measure 2-wire transmitters.
• Basic Accuracy— ±( 0.08% of 24 mA Span + 1 LSD)-Source to read within 0.03 mA.

• Quik-Chek Outputs— HI and LO push-buttons for instant output of 20.00 or 4.00 mA. Speed sensitive digital potentiometer adjusts output from any QUIK-CHEK position for valve stroking.

• Power Up Transmitters— Drives to 700 ohms loads.
• Long Battery Life — Sources 12 mA for over 22 hours, 20 mA for over 16 hours. Turns itself off after 30 minutes.
• Dependable Operation — Fuseless protection to 120 V AC/DC.

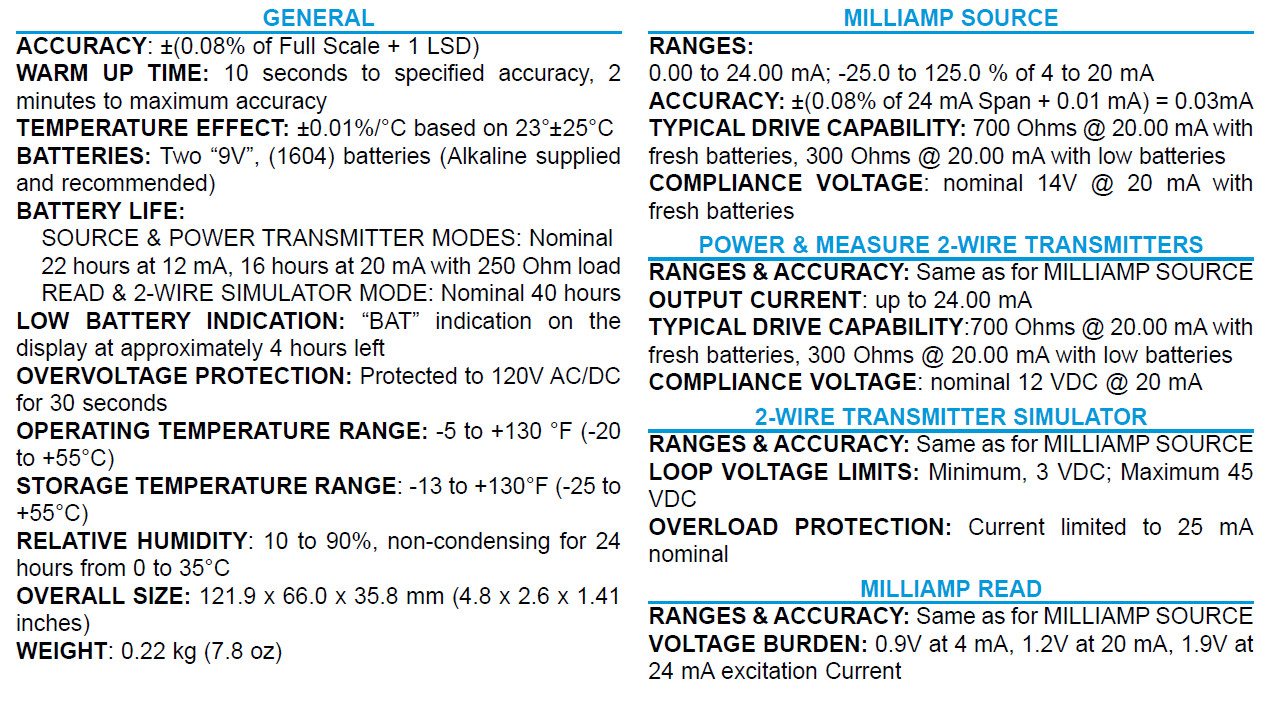

Altek 134-2 Data Sheet
