Airy Technology P611 Handheld Particle Counter
|
Item Number: P611
Manufacturer: Airy Technology
Part Number: P611
Product Options
* denotes required field
Channel Particle Size Selection*
You must select an option for 'Channel Particle Size Selection'.
* Whole number only
|

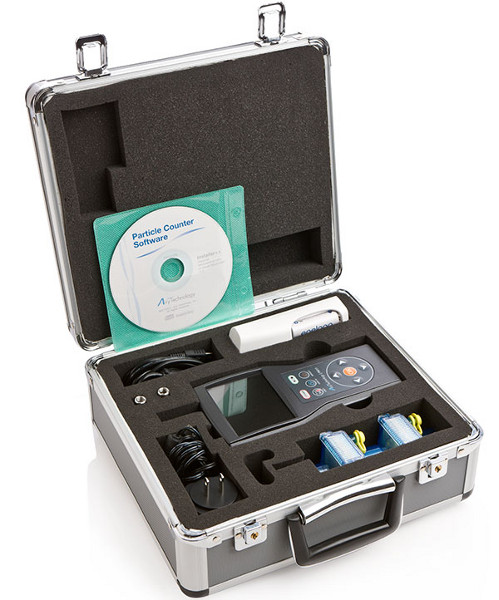

 Airy Technology P611 Handheld Particle Counter Airy Technology P611 Handheld Particle Counter (Carrying Case) |
|

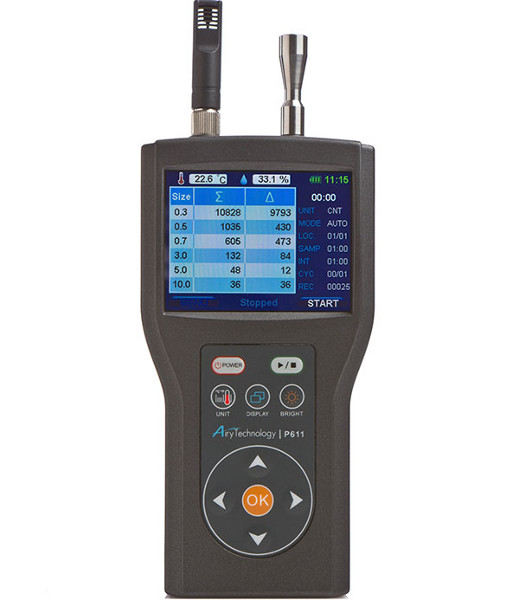

Airy Technology P611 Handheld Particle Counter
The Airy Technology P611 is the best solution for professionals who validate ISO cleanrooms (Class 5 - 9) or investigate indoor air quality matters. The P611 weighs 1.26 lb, is user-friendly and easy to configure. The Airy P611 measures particles from 0.3 µm to 10.0 µm with a flow rate of 0.1 CFM (2.83 LPM) over 6 channels. This particle counter can display up to 6 size channels and also temperature and humidity that are optional. The P611 can store up to 10,000 readings that can be viewed on the unit or on a computer via USB cable. The Airy P611 is the ideal instrument to meet ISO 21501-4 and JIS B9921.
Applications:
- ISO Cleanroom Certification (ISO Class 5-9)
- Point Measurements in Cleanrooms
- Particle Source Investigation
- Filter Testing
- Indoor Air Quality Investigations
- Quality Control
Features
- Measures 0.3 μm to 10.0 μm
- 0.1 CFM (2.83 LPM) flow rate
- Measure/Display 6 channels of simultaneous data
- Super lite at 1.26 lb (0.57 kg)
- Removable and rechargeable AA batteries with charger
- Long life laser diode technology

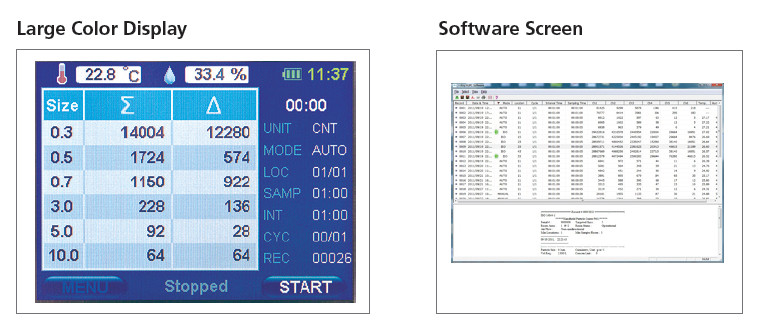

- Large color LCD display
- Stores up to 10,000 sample records and 999 locations
- View data recorded on-screen or via computer
- Add an optional temperature & humidity probe
- Concentration limit of 4,000,000 per ft³
- Complies with ISO 21501-4 and JIS B9921 standards
- Reports ISO 14644-1 and EU GMP
- Lightweight high-impact injection molded plastic enclosure
- Includes data download software
- Modern USB output
- Easy to clean and wipe down
- Internal audible alarm
- 2 year limited warranty
 Technical Specifications
| Particle Size Range |
0.3 to 10.0 μm |
| Channel Sizes |
Standard: 0.3, 0.5, 0.7, 1.0, 2.0, 5.0 μm
Standard: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Standard: 0.3, 0.5, 0.7, 1.0, 2.5, 5.0 μm
Standard: 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm
Optional: additional size channels available |
| Counting Efficiency |
50% @ 0.3 μm; 100% for particles >0.45 μm per JIS |
| Concentration Limit |
4,000,000 Particles/ft³ @ 5% coincidence loss |
| Light Source |
Long Life Laser Diode |
| Zero Count Level |
<1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS) |
| Size Resolution |
<15% at 0.5 μm (per ISO 21501-4) |
| Flow Rate |
0.1 CFM (2.83 LPM) |
| Flow Rate Control |
Automatic flow control |
| Calibration |
NIST traceable |
| Sample Probe/Tubing |
Isokinetic sampling probe and probe for tubing |
| Sampling Modes |
Manual, automatic, ISO¹, GMP², cumulative, differential, count/concentration |
| Reports |
ISO 14644-1 and EU GMP |
| Sampling Time |
1 second to 99 minutes 59 seconds (configurable) |
| Sampling Frequency |
1 to 9999 cycles or continuous (configurable) |
| Sample Output |
Internal HEPA filter |
| Vacuum Source |
Internal Pump |
| Communication Interface |
USB |
| Data Storage |
10,000 sample records |
| Security |
2-level password protection |
| Alarm |
Counts, low battery, flow and laser status |
| Display |
3.5″ (8.9 cm) 320 x 240 Color LCD |
| Power |
DC 5V 1A (Mini USB TYPE-B) |
| Battery |
Removable AA Ni-MH |
| Environmental Sensors |
Optional temperature/humidity probe |
| Dimensions (L x W x H) |
7” x 3.5” x 1.9” (17.8 cm x 9 cm x 4.7 cm) does not include probes |
| Weight |
1.26 lb (.57 kg) |
| Standards |
ISO 21501-4 and JIS B9921 |
| Warranty |
2 year limited warranty |
| Operating Conditions |
5° to 35° C 20% to 95%RH non-condensing |
| Storage Conditions |
-20° to 50° C 20% Up to 98%RH non-condensing |
| Accessories |
Operating manual on CD, AC adapter, isokinetic inlet, probe for tubing, USB cable, purge filter, data download software, 4 x AA batteries with charger, calibration certificate, carrying case. |
| Optional Accessories |
Temperature/Humidity probe |
¹ISO 5-9 at 0.3-5.0 µm excluding ISO 5 at 5.0µm
²GMP A-C in operation, A-D at rest
|
