AEMC MR410 AC/DC Current Probe

The AEMC MR Series AC/DC Probes are professional AC/DC current probes designed to
extend current measuring capabilities of DMMs,oscilloscopes and other instruments.
They are built to the latest safety and performance standards, including the CE Mark and UL

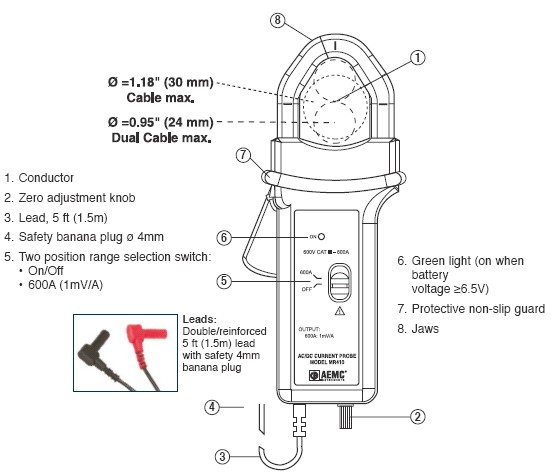

approval. Two different hook-shaped jaws are offered, both permitting the user to “pry” or “hook”
onto cables (will accept 2 x 500 MCM) or even onto small bus bars. The MR Series probes use
Hall effect technology and measure AC and DC current. The electronics and batteries are self-contained
in the handles. The output of the AC/DC probes is 1mV/A and 10mV/A.  The MR Series probes use Hall effect
technology and measure AC and DCcurrent. The electronics and batteriesare self-contained in the handles.

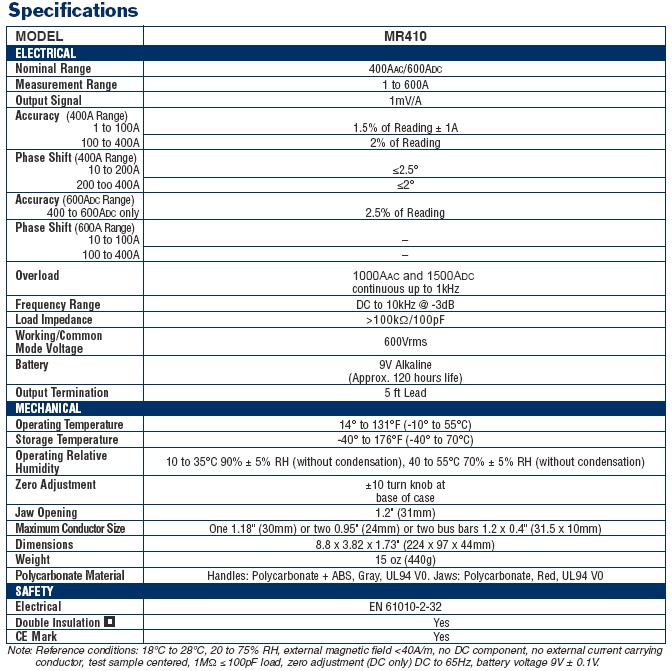

Theoutput of the AC/DC probes is 1mV/A. The Model MR410 measures to 400AAc/600ADC.
The Model MR410 is single range with manual zero adjust. There is no output filtering - True RMS with
DC component measurements are possible. Phase shift is excellent, making the MR Series ofcurrent probes
well suited for powerand power quality applications.

Features
  • Measurement range of 400AAC/600ADC (MR410)
  • Measurement range of 1000AAC/1500ADC (MR 520)
  • Distinct jaw shapes to be used for hooking or prying around the conductor
  • Manual zero knob
  • Conforms to EN 61010, 600V,Cat. III safety standard
  • Low phase shift for power measurements
  • mV output signals
  • Designed for DMMs, recorders,oscilloscopes, power and harmonic meters
  • Double Insulation
  • CE Mark

Applications
  • DC motors
  • Batteries
  • Automobile engine testing
  • Power measuring quality analysis
  • Power load monitoring
