AEMC Flexible Current Probe Simple Logger (AL-24 AL36)
Our Price: This Model is Discontinued. Call (732) 632-6400 for Replacement Options.
Item Number: 2113
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2113
|
|
AEMC Flexible Current Probe Logger The AmpFlex™ Flexible Current Probe Simple Logger® combines two technologies to become the ultimate measurement recording device. The AmpFlex™ flexible current probe is designed to take measurements where standard clamp-ons cannot: in tight breaker panels, around large buss bars, around cable bundles, and even wrapped around irregular shapes. Combined with the recording technology of the Simple Logger it measures, records and graphs True RMS readings (250 & 2500 or 5000 Arms). The flexible sensor is available in 24" or 36" lengths. It is weatherproof NEMA 4X, IP65 rated. The flexible current probe logger is self-contained and records for up to 6 months. RS-232 output. Graphing software is included with cable for PC interfacing.
Features:
-
Four models to choose from
-
True RMS recording (250 & 2500Arms) (500 & 5000Arms)
-
Self contained - no exposed connections
-
Weatherproof NEMA 4X, IP65 rated
-
Flexible sensor - fits anywhere
-
Records for up to 6 months
-
Scale automatically selected in software
-
RS-232 output
Applications:
-
Load profiling
-
Machine load monitoring
-
Substation monitoring
Specifications
Number of Channels: One
Measurement Range: 0 to 250Arms; 0 to 2500Arms 0 to 500Arms; 0 to 5000Arms
Input: 5 to 250 or 5 to 2500Arms or 5 to 500, 5 to 5000Arms Internally Switch Selectable
Input Sensor: AmpFlex™ 24" or 36" Flexible Current Sensor
Resolution: 250A range: 125mA max, 500A range: 250mA max, 2500A range: 1.25A max, 5000A range: 2.5A max
Accuracy*: 1% of Reading + Resolution
Sample Rate: 4096/hr maximum
Storage Technique: Time Extension Recording™ (TXR™)
Data Storage: 8192 readings
Power: 9V Alkaline battery, Up to six months of recording @ 25°C
Output: RS-232 via DB-9 connector
Indicators: Red LED light flashes LOGGING mode, and is off in OFF mode, continuous in overload condition
Controls: One button used to start and stop recording sessions and to turn the data logger on and off
Working Voltage: 600VAC maximum
Size: Sensor: Diameter 0.5" (12.5mm)Logging Module: 19/16 x 21/2 x 41/2" (40.64 x 63.5 x 114.3mm)
Weight: (with battery) 15.5 oz (439g)
Mounting: Velcro® pads supplied loose
Maximum Conductor Size: 24" length: 8" diameter conductor, 36" length: 12" diameter conductor
Operating Temperature: -4° to +158°F (-20 to +70°C)
Storage Temperature: -4° to +174°F (-20 to +80°C)
Relative Humidity: 5 to 95% non-condensing

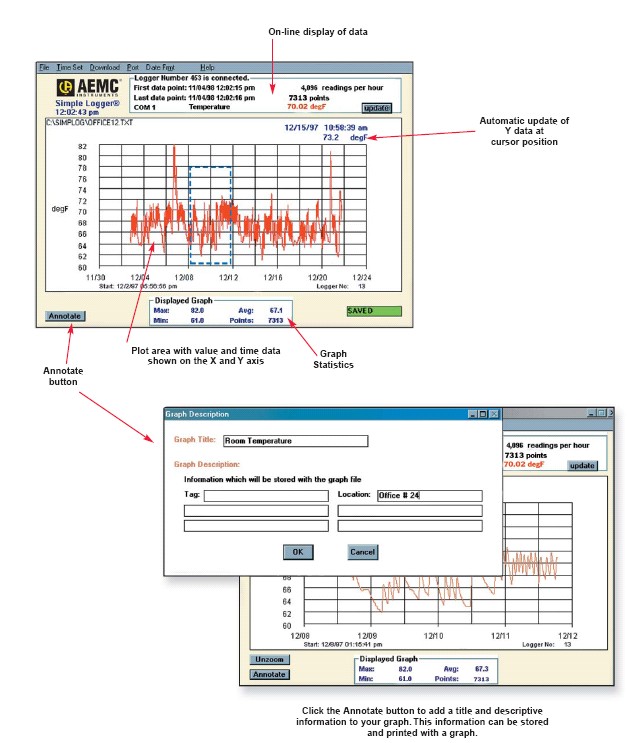

Features - Simple Logger Software
-
Very easy to setup and use - no programming required
-
Statistics appear on screen: Max, Min, Avg, Date and Time
-
On-Line display of data logger values
-
Zoom capability with automatic statistics update
-
User keyed text annotations• Automatically displays values at the cursor position
-
Export data to spreadsheet and database software
-
Print both graphs and tabular listings
-
Paste graphs into other applications
-
Automatic selection for AC loggers
-
Automatic baud rate selection (version 6.0 or later)
|
