AEMC 5600 Micro Ohm Meter with 10 Amp Test Current
Our Price: THIS MODEL WAS DISCONTINUED REPLACED BY AEMC 6240
Item Number: 1431.01
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 1431.01
|
|
AEMC Model 5600 Micro Ohm Meter
The Micro-Ohmmeter Model 5600 performs accurate, reliable low
resistance measurements with test current to 10A and resolution to 1mÙ.
The Model 5600 uses a four-wire Kelvin Bridge method, which eliminates
test lead resistance for a measurement accuracy of 0.25%. A reverse polarity
switch compensates for the effect of DC voltage interference on the accuracy
and permits reading averaging. A built-in circuit filters against AC signals.
The large, easy-to-read LCD directly displays resistance measurements in ohms
with an automatic decimal point. Power is supplied by a long-life Ni-CAD battery
with a built-in recharger. The Model 5600 features an automatic shutoff after
four minutes on non-use.
The Model 5600 is housed in a sealed, safety yellow field case with carrying
handle and a lid that may be removed during testing.
| Features
Four terminal Kelvin resistance measurement
10A test current
+/- 0.25% basic accuracy
1micro-ohm resolution
Direct reading, easy to operate
Six selectable ranges
Reverse polarity switch
Overload and input fuse protection
Automatic decimal point and zero
Rechargeable NiCD battery (110/220V)
Rugged field case for industrial applications
CE Mark
|
|
|
| Applications
Contact resistance of breakers and switches
Wire to terminal connections
Winding resistance of motors and transformers
Resistance on electric motors
Aircraft and rail bonds
Grounding connections
Battery strap measurements
|

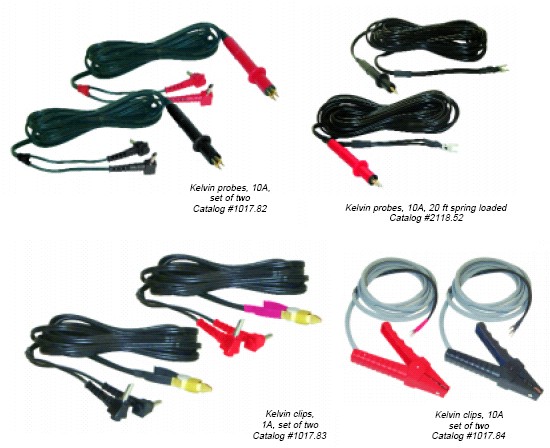

Note: The Model 5600 does not include test leads, Please Select Test Leads When Ordering:
 |
Our Price: THIS MODEL WAS DISCONTINUED, CALL (732) 632-6400 FOR REPLACEMENT OPTIONS
AEMC 1A 10 ft. Kelvin Clips, set of two
|
Our Price: Discontinued - Replaced by AEMC 2118.73
AEMC 10A 10 ft. Kelvin Probes, set of two, spring loaded
|
AEMC 10A - Hippo 10 ft. Kelvin Clips, set of two
|
Our Price: Discontinued - Replaced by AEMC 2118.74
AEMC 1A 20 ft. Kelvin Probes, set of two
|
The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. (Unit includes one set of 10A Kelvin Clips (#1017.84)
|
The 10A Micro-Ohmmeter Model 6250 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6250 is the most accurate Micro-Ohmmeter available, with results within 0.05%.
|
