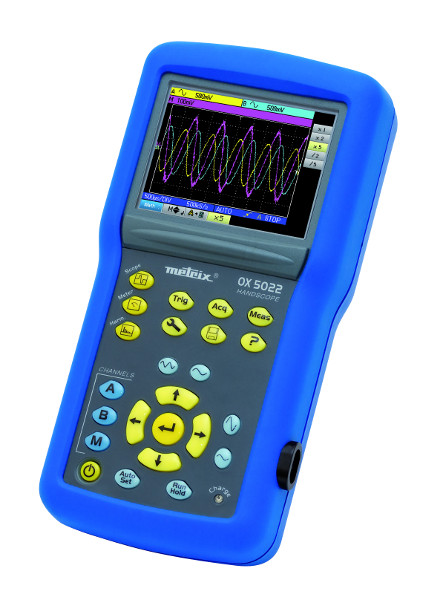

AEMC OX5022-CK Oscilloscope

The compact, shockproof, IP54, Hand-scope Oscilloscope Model OX5022 can be comfortably held in one hand.  The Hand-scope is an ergonomically designed instrument equipped with a color screen and LED back-lighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.

The Model OX5022 combines three measuring instruments in one:

• 20MHz oscilloscope
• Independent 8000-count multimeter with power measurements
• Built-in harmonic analyzer out to the 31st harmonic (fundamental between 40Hz and 450Hz)

2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month.

Isolated USB communication with the SCPI protocol is available. This makes it simple to program the instrument remotely with the supplied SX-METRO software. This product has been developed using an Eco-Design approach to reduce their environmental impact and is supplied with a 3-year warranty.

Features

• 2 totally isolated channels
• Three Instruments in One:
  -  20MHz Oscilloscope
  -  Double 8000-count TRMS Multimeter / Power Analyzer
  - Harmonic Analyzer
• Recording Capacity
• 8-hour Battery Life
• Integrated Multilingual Help Function
• 3.5" Color LCD Screen

Applications

• Field Troubleshooting
• Education
• Design verification

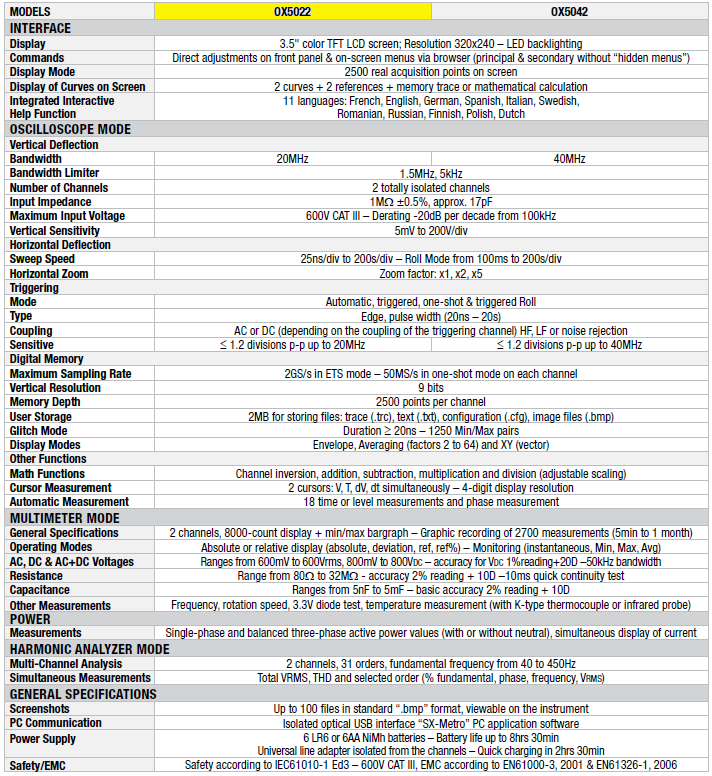

Technical Specifications

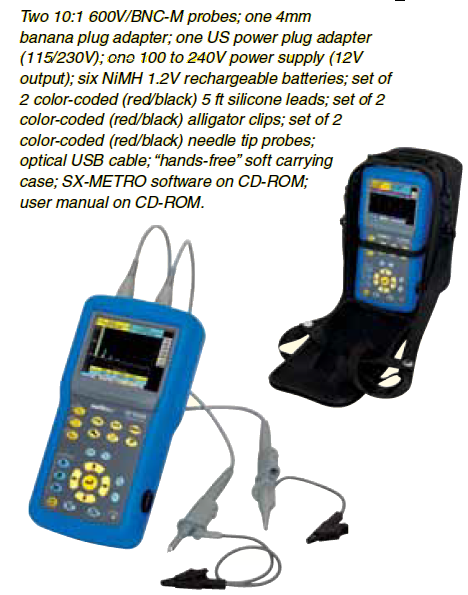

Accessories

AEMC OX5022 Data Sheet
