AEMC MX57EX TRMS Intrinsically Safe Digital Multimeters
|
Item Number: 2130.66
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2130.66
* Whole number only
|
|

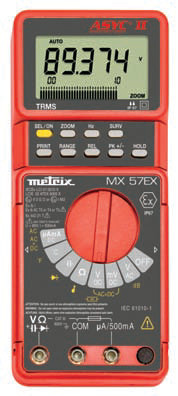

AEMC MX57EX TRMS Intrinsically Safe Digital Multimeters
The Model MX57EX TRMS is an intrinsically safe digital multimeter designed for use in dangerous or explosive atmospheres. This meter is considered as a passive device without inductive or capacitive issues that are problematic in dangerous or explosive environments. This meter provides high functionality in a unique case designed for enhanced safety, reliability, ease-of-maintenance and protection from contaminants. Features
- LCI 07: 0010X
- Safety rating: IEC 61010-1: 2001
Agency Approval: IECEx LC107.0010 X,
LCIE 02 ATEX 6005 X, Ex II 2 G D or Ex I
M2, Ex ib I, Ex ib IIC T5 or T4 or T3 ,
Ex ibD 21 T
- Logic signal measurement and ADP input
- Min/Max/Avg functions
- Bargraph with zoom (x5) and center zero
- Rugged design — IP67 rating
- Protection by 500mA intrinsic safety fuse for the current range
- Includes test leads

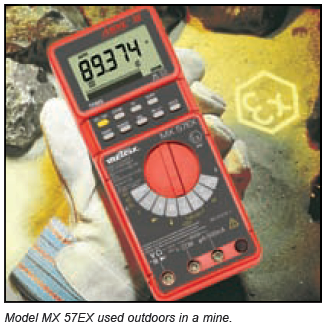

.jpg) .jpg) Applications
- Oil refineries
- Mining
- Pharmaceutical plants

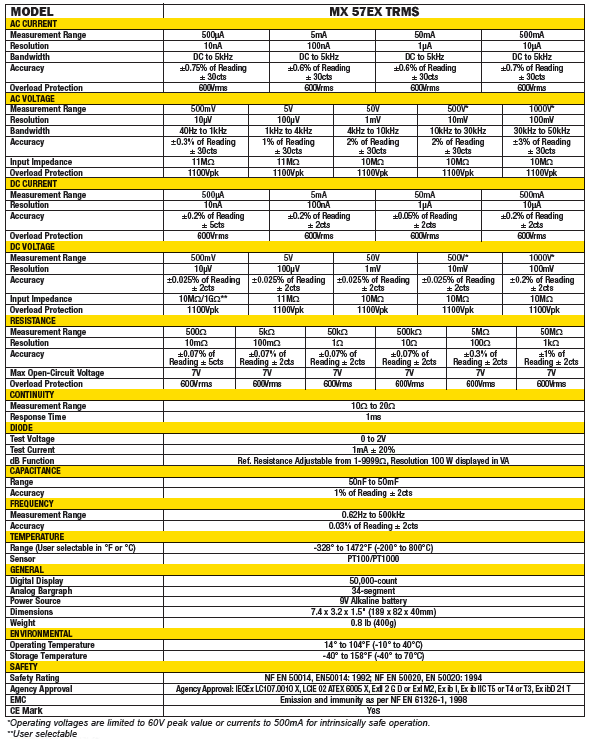

Technical Specification
.jpg)

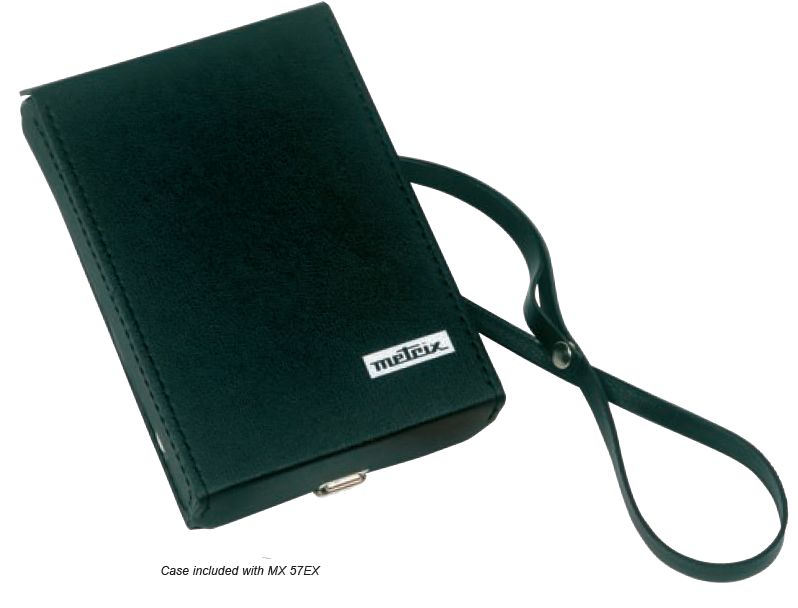

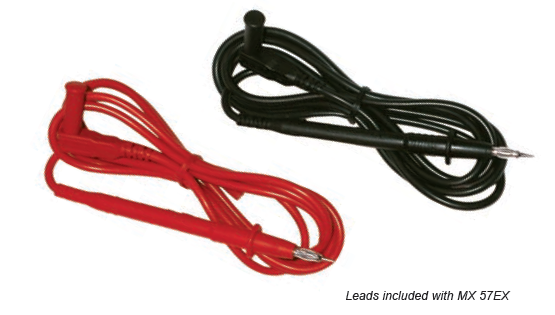

Included
.jpg) .jpg)
|
