AEMC MTX 3283B-COMCM 50,000/100,000-Count Digital Multimeters
Our Price: Call For Availability
Item Number: 2125.76
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2125.76
Product Options
AEMC MTX 3283B Model Options
AEMC MTX 3283B-COMCM Calibration Options
|
|
AEMC MTX 3283B-COMCM 50,000/100,000-Count Digital Multimeters
The MTX Mobile Multimeter Model MTX 3283B-COMCM offers a resolution of 100,000 counts, 0.02% basic accuracy, 200kHz bandwidth. The unique design features a multi-position screen and push button function selection and is ideally suited for both bench-top and hand-held use.
Features
- Large graphic LCD display, bilingual menus (English/French)
- LED back-lighting for easier reading and lower power consumption
- Four line 100,000-count digital display, bargraph and graphic
- Shows four variables simultaneously
- Basic accuracy 0.02%, specified bandwidth 200kHz
- 8-key “virtual” measurement selectors
- Frequency measurements up to 2MHz
- Temperature measurements with Pt 100 or Pt 1000 probes and J or K thermocouples
- Storage of 6500 measurements with date and time
- USB communication
- Three 1.5V AA NiMH rechargeable batteries are included
- Power pack reduces the average charging time of the batteries
- PC-software included to store, analyze and transfer data
- UL and CUL approved; 600V CAT IV; 1000V CAT III
Applications
- AC + DC volts from 100.000mV to 1000.0V
- AC + DC current from 1000.00µA to 20.000A
- Frequency from 10.000Hz to 2MHz
- Resistance, continuity, diode test, capacitance, temperature and more

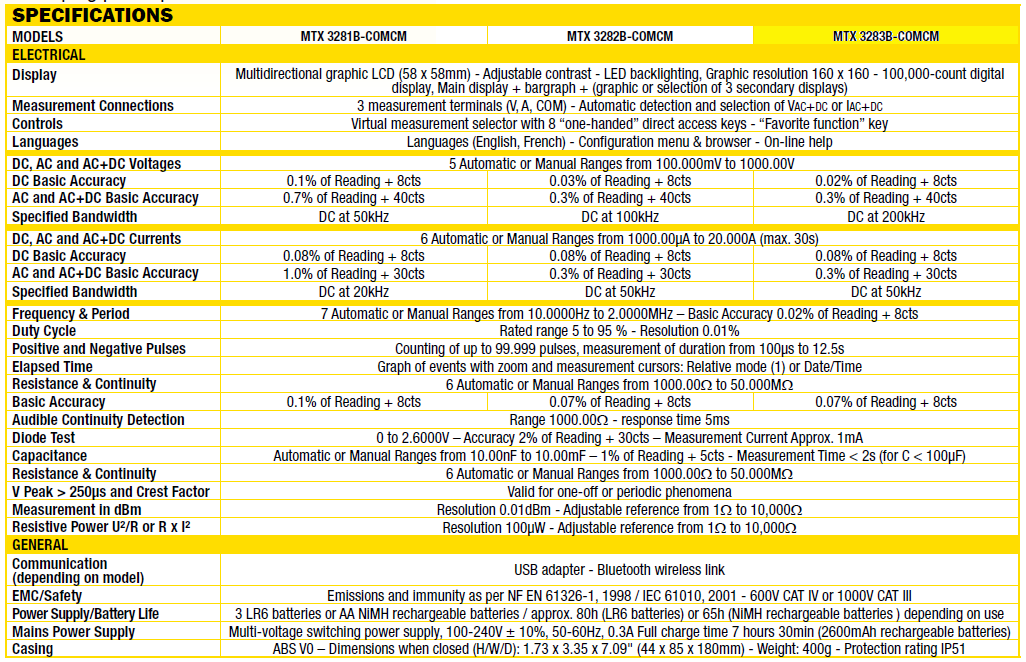

Technical Specification
|
AEMC MTX 3281B-COMCM offers a resolution of 100,000 counts, 0.02% basic accuracy, 50kHz bandwidth. The unique design features a multi-position screen and push button function selection and is ideally suited for both benchtop and hand-held use.
|
Our Price: Call For Availability
AEMC MTX 3282B-COMCM offers a resolution of 100,000 counts, 0.02% basic accuracy, 100kHz bandwidth. The unique design features a multi-position screen and push button function selection and is ideally suited for both bench-top and hand-held use.
|
