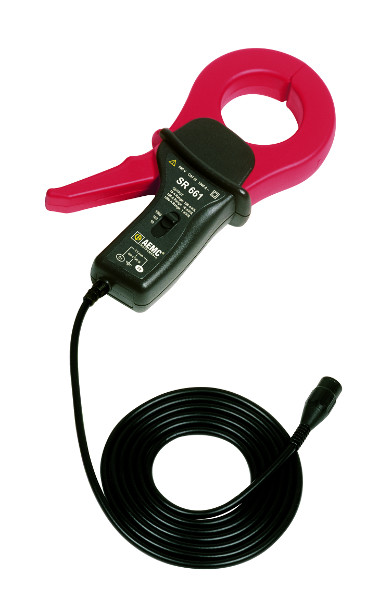

AEMC Model SR661 AC Current Probe (10A-100mV/A, 100A-10mV/A, 1000A-1mV/A, BNC)
|
Item Number: 2113.49
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2113.49
Product Options
AEMC SR661 Calibration Option
* Whole number only
|
|
AEMC Model SR661 AC Current Probe (10A-100mV/A, 100A-10mV/A, 1000A-1mV/A, BNC)
The SR661 is a range selectable probe that offers 3 switch selectable ranges of 20, 200 or 2000AAC. This probe has a voltage output proportional at the current measured in the jaw of the probe. The SR661 has an integral 6.5 ft (1.98m) lead terminated by BNC connector. The high accuracy and wide frequency response makes this probe an excellent choice for use with oscilloscopes.
AEMC Model SR661 AC Current Probe Features
-
Measurement range of 100mA to 1200AAC
-
Large jaw opening accommodates conductors up to two 500MCM
-
Improved ergonomic design and easy operation
-
Conforms to EN 61010, 600V Cat. III
-
Low phase shift for power measurement
-
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
AEMC Model SR661 AC Current Probe Applications
