AEMC Model SR601 AC Current Probe , 2113.43
|
Item Number: 2113.43
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2113.43
Product Options
AEMC SR601 Calibration Option
* Whole number only
|
|

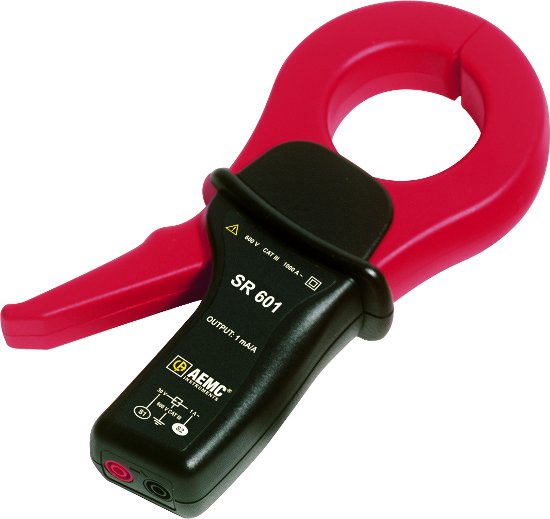

AEMC Model SR601 AC Current Probe (1000A, 1mA/A, Jack)
The SR600 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR600 has jack output termination that accepts 4mm banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift is important.
AEMC Model SR601 AC Current Probe Features
-
Measurement range of 100mA to 1200AAC
-
Large jaw opening accommodates conductors up to two 500MCM
-
Improved ergonomic design and easy operation
-
Conforms to EN 61010, 600V Cat. III
-
Low phase shift for power measurement
-
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
AEMC Model SR601 AC Current Probe Applications

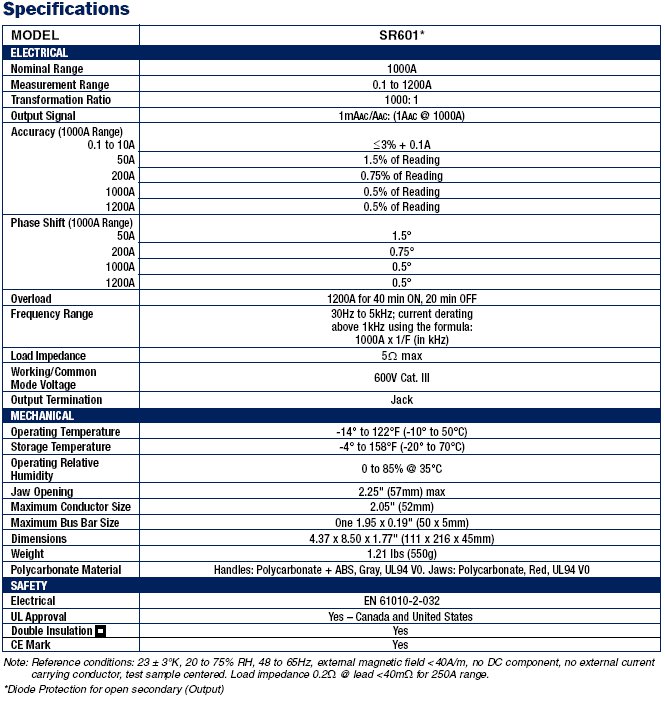

AEMC Model SR601 AC Current Probe Specifications
|
