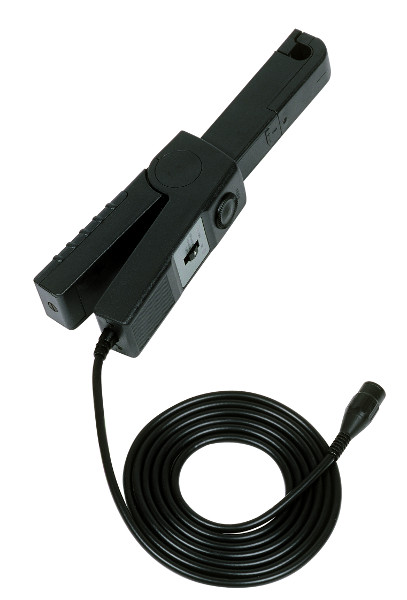

AEMC Model SL261 AC/DC Current Probe (10A-100mV/A, 100A-10mV/A, BNC)
|
Item Number: 1201.51
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 1201.51
Product Options
AEMC SL261 Calibration Option
* Whole number only
|
|
AEMC Model SL261 AC/DC Current Probe (10A-100mV/A, 100A-10mV/A, BNC
The Model SL261 is a portable 100A peak current probe with insulated BNC output cable that can accurately measure AC or DC current waveforms. The unit has proportional mV output for direct readings on oscilloscopes. Three position slide switch on handle selects ranges and ON/OFF.
AEMC Model SL261 AC/DC Current Probe Features
-
Oscilloscope current probe for applications in industrial and power environments
-
Analyze, measure and accurately display distorted current waveforms and harmonics
-
Current range from 100mA to 100AAC/DC
-
Direct BNC connection to scope
-
Jaw designed for easy maneuvering in crowded spaces
AEMC Model SL261 AC/DC Current Probe Applications

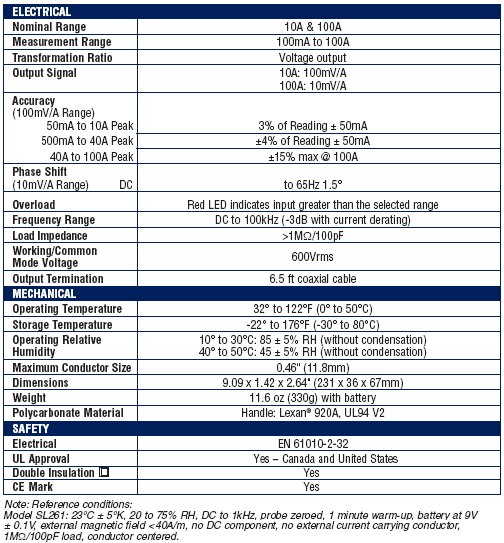

AEMC Model SL261 AC/DC Current Probe Specifications
|
