AEMC Model MN261 24/240 AC Amp Current Probe, 2115.82
|
Item Number: 2115.82
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2115.82
Product Options
AEMC MN261 Calibration Option
* Whole number only
|

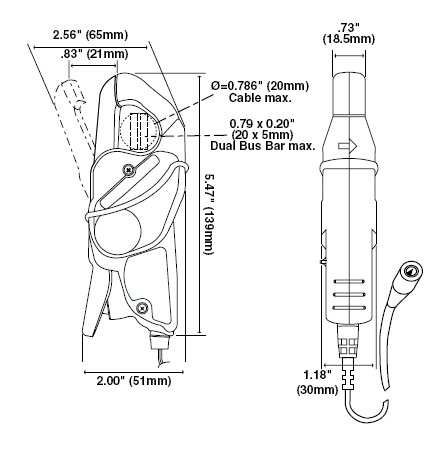

 MN261 AC Current Probe Model MN261 (24A-100mV/A, 240A-10mV/A, BNC) AEMC MN-261 Dimensions |
|

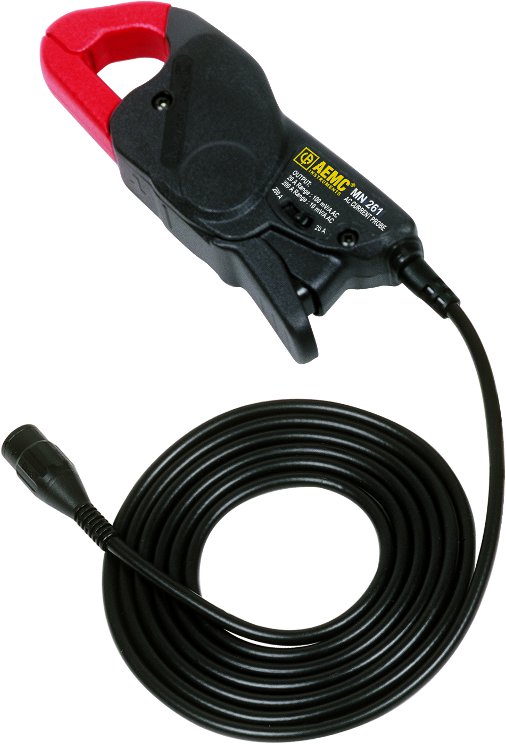

AEMC Model MN261 AC Current Probe (24A-100mV/A, 240A-10mV/A, BNC)
The MN261 is a high sensitivity probe with voltage outputs (100mV/A and 10mV/A) and combine two switch-selectable ranges of 20A and 200A, thus permitting accurate measurements at low and high levels. The MN261 is designed for oscilloscopes and other BNC terminated instruments. It has two performing ranges (20A, 200A) both voltage output (100mV/A and 10mV/A) and 40Hz to 10kHz response.
AEMC Model MN261 AC Current Probe Features
-
Small, compact size
-
Large jaw opening accommodates conductors up to 250MCM
-
Designed for DMMs, loggers, recorders and oscilloscopes
-
Conforms to EN 61010, 600V Cat. III
AEMC Model MN261 AC Current Probe Applications
-
Measuring in breaker panels
-
Industrial loads
-
HVAC
-
Residential and commercial sites
-
5A secondary current transformers (CTs) monitoring

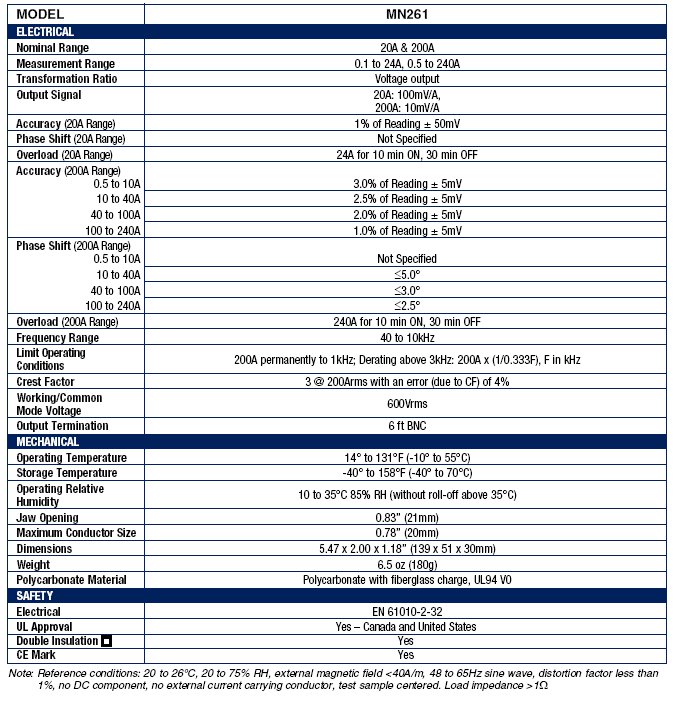

AEMC Model MN261 AC Current Probe Specifications
|
