AEMC Model MN01 AC Current Probe (150A, 1mA/A, Lead)
|
Item Number: 2129.17
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2129.17
Product Options
AEMC MN01 Calibration Option
* Whole number only
|
|
AEMC Model MN01 AC Current Probe (150A, 1mA/A, Lead)
MN01 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications.
If there is a current in the conductor clamped, the Model MN01 is protected against over-voltages during disconnection from
the measurement instrument.
AEMC Model MN01 AC Current Probe Features
- Small, compact size
- Measurement range of 2 to 150AAC
- Jaw opening accommodates conductors up to 0.39" diameter
- Designed for DMMs, loggers, recorders and oscilloscopes
- 40Hz to 10kHz response
- 1mAAC/AAC output signals
- Designed to EN 61010, 600V CAT III safety standard
AEMC Model MN01 AC Current Probe Applications
- Measuring in breaker panels
- Industrial loads
- HVAC
- Residential and commercial sites
- Data logging/recording

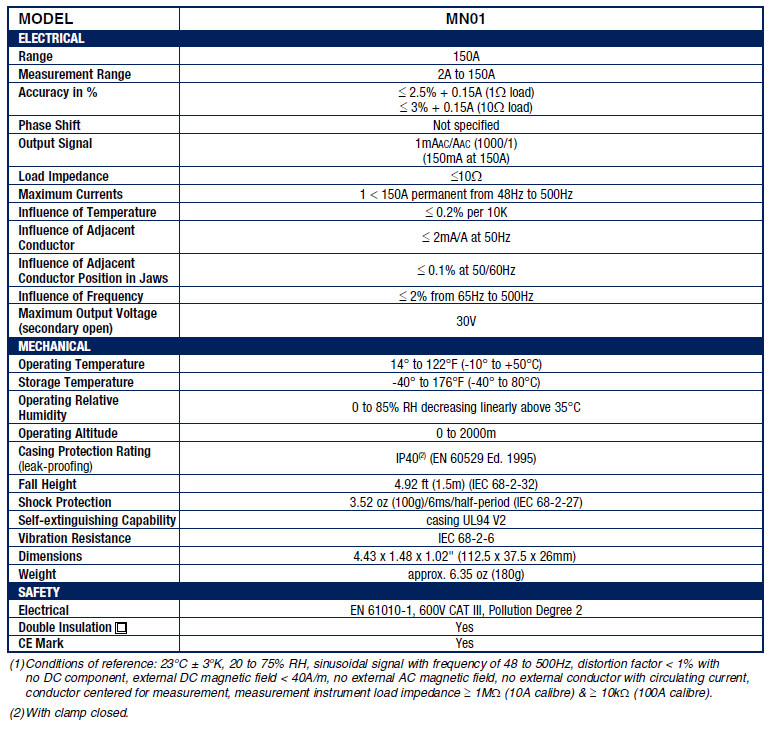

AEMC Model MN01 AC Current Probe Specifications
|
