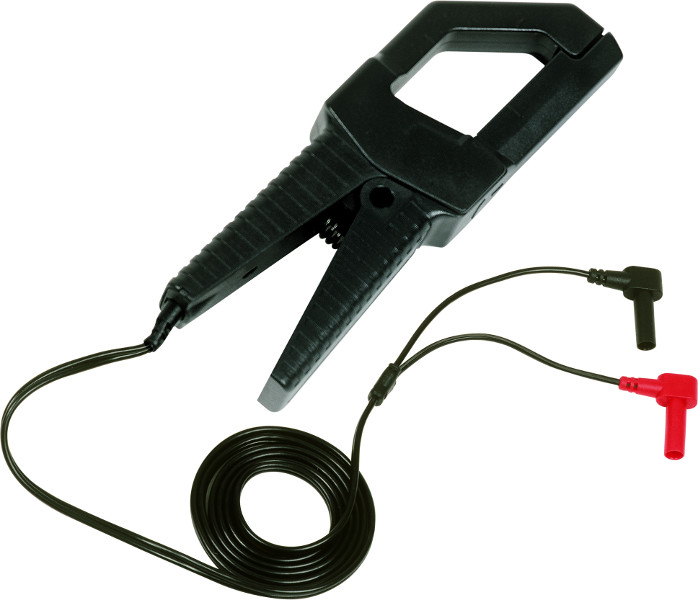

AEMC Model MD301 AC Current Probe (500A, 1mVDC/AAC, Lead)
|
Item Number: 1201.07
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 1201.07
Product Options
AEMC MD301 Calibration Option
* Whole number only
|
|
AEMC Model MD301 AC Current Probe (500A, 1mVDC/AAC, Lead)
The MD301 is built for ruggedness, versatility and ease of use. It is a general purpose 500A current probe, but with mVDC output for recorders, loggers and other instruments with mVDC inputs. Output termination is double insulated 5 ft lead with safety banana plugs.
AEMC Model MD301 AC Current Probe Features
-
Unique hook-shaped jaws that enable the user to "pry" into or "hook" onto cables
-
Maximum conductor size is 2 x 500kcmil
-
Works as a traditional current transformer with ratio of 1000:1
AEMC Model MD301 AC Current Probe Applications
-
Electrical utility
-
HVAC
-
Industrial maintenance
-
Laboratory
-
Plant maintenance

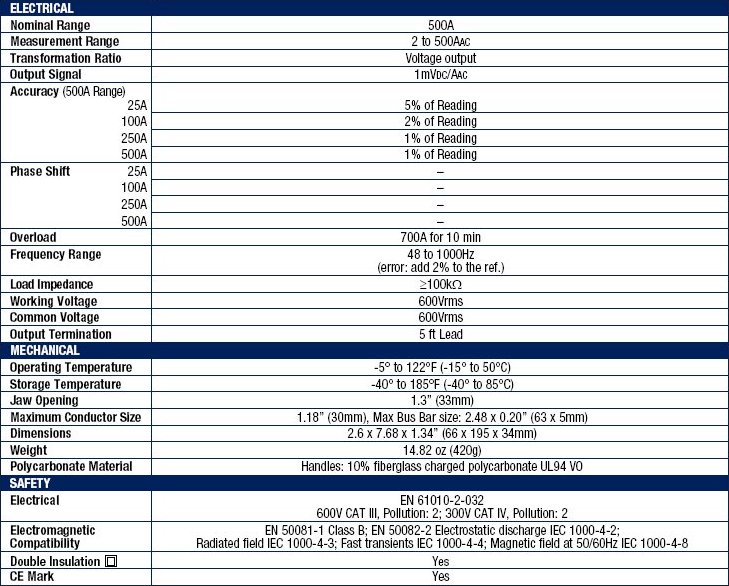

AEMC Model MD301 AC Current Probe Specifications
|
