AEMC Model JM875 AC Current Probe (30A-100mV/A, 300A-10mV/A, 2800A-1mV/A, Jack)
|
Item Number: 2110.89
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2110.89
Product Options
AEMC JM875 Calibration Option
* Whole number only
|
|
AEMC Model JM875 AC Current Probe (30A-100mV/A, 300A-10mV/A, 2800A-1mV/A, Jack)

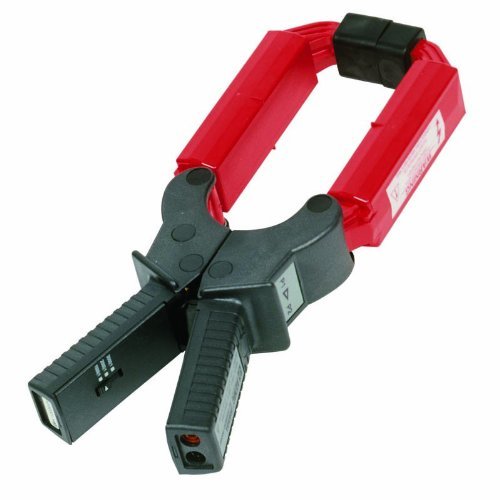

The Model JM875 is a high performance AC current probe for higher currents. Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current and power. The high quality magnetic cores and uniform windings provide for accurate measurements up to 30AAC/300AAC/3000AAC. The ?squared? jaw permits multiple conductor or bus bar positioning. The Model JM875 provides excellent True RMS capabilities and reliable signal reproduction. It also provides an accurate voltage output proportional to the measured current (1mV/A,10mV/Aor 100mV/A). This voltage output enables instruments without current ranges to display or log currents on an AC voltage range.
AEMC Model JM875 AC Current Probe Features
-
Nominal range: 30AAC, 300AAC, 3000AAC (continuous cycle for the full temperature range)
-
Output: 100mVAC/AAC, 10mVAC/AAC, 1mVAC/AAC
-
Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
AEMC Model JM875 AC Current Probe Applications
-
Electrical utility
-
HVAC
-
Industrial maintenance
-
Laboratory
-
Plant maintenance
AEMC Model JM875 AC Current Probe Specifications
|
