AEMC L642 Thermocouple Loggers
|
Item Number: 2126.08
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2126.08
* Whole number only
|
|

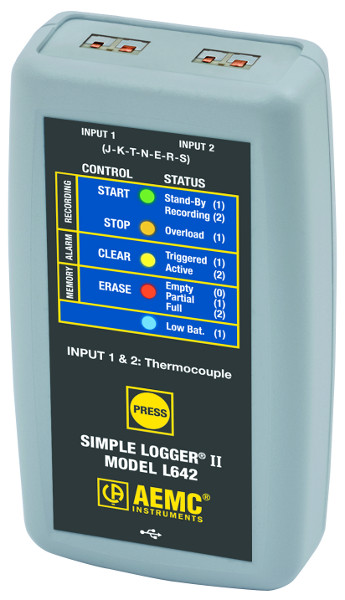

L642 Thermocouple Loggers
The Simple Logger II Model L642 is a two channel thermocouple data logger. The choice of data storage modes and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to the application at hand. Extended Recording Mode (XRM) and delayed start time are just two of the many application friendly features. The Simple Logger II Model L642 records temperature at user selectable rates of 1 every 5 seconds to 1 per day. Using J,K,T,N,E,R or S thermocouples, it measures from -346 to + 1767F with resolution down to 0.1 (range dependent). The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView software. Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instruments internal memory to the computer for analysis.
L642 Thermocouple Loggers Features
-
2 input channels
-
User-selectable thermocouple types J, K, T, N, E, R, and S
-
Programmable storage rates from 8 every second to 1 every day
-
3 user selectable storage modes; Stop when full, FIFO; XRM
-
Stores up to 240,000 measurements in non-volatile memory
-
Powered by two standard AA Alkaline batteries
-
Lightweight, compact, fits anywhere
-
5 LED indicators quickly and clearly display Logger status
-
Includes DataView software FREE for data storage, real-time display, analysis and report generation
-
50V Cat III
L642 Thermocouple Loggers Applications
-
Process monitoring
-
HVAC monitoring
-
Refrigeration monitoring

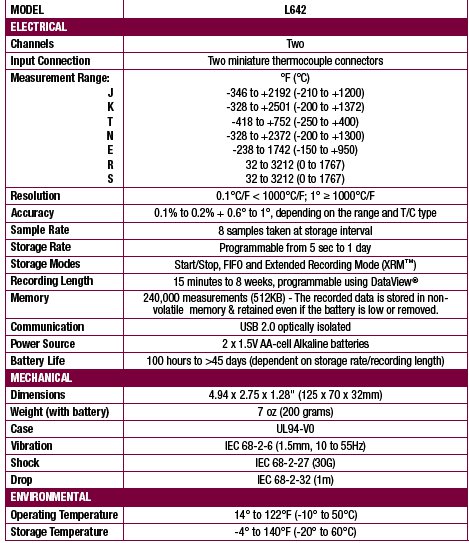

L642 Thermocouple Loggers Specifications
|
