AEMC CL601 Clamp-on Simple Logger II

Our Price: $489.00

Item Number: 2126.01

Manufacturer: AEMC (Chauvin Arnoux)

Part Number: 2126.01

Product Options

* denotes required field

NIST Traceable Calibration - Recorder*

Calibration not Included

NIST Traceable Calibration - Logger 2126.01 (+ $95.00)

Quantity:

Email this page to a friend

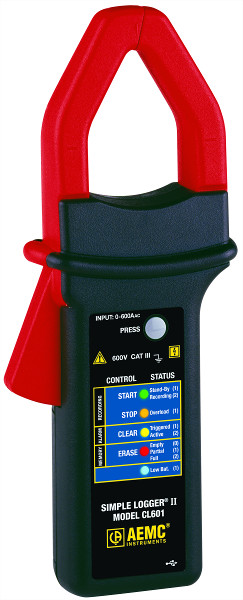

AEMC CL601 Clamp-on Simple Logger II

The Simple Logger^® II Model CL601 is a battery powered, one channel recording device with an alkaline battery pack. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency (50 or 60Hz). Harmonic measurements are calculated from these 64 samples.
The Simple Logger^® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the input(s) are ignored between measurement intervals.
The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView^® software.

Features

0 to 600Arms Input
Self contained, no exposed connections
TRMS measurements
Easy-to-use one button operation
Overload indication
Alarm Function
Includes DataView^®software
Optically isolated USB 2.0 communication
600V Cat. III, 300V Cat. IV

Applications

Load profiling
Machine load monitoring
HVAC & Electrical Troubleshooting
Start-Stop time stamping

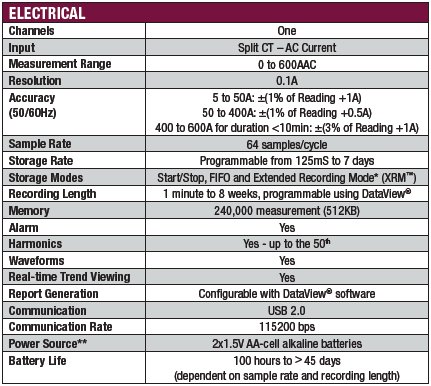

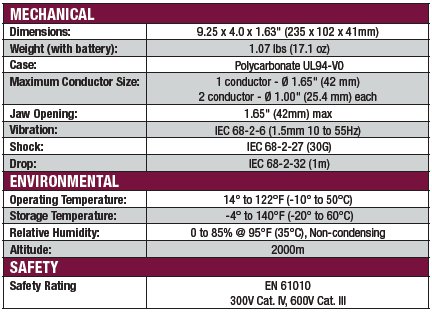

Technical Specifications

Features - Simple Logger Software

Very easy to setup and use - no programming required
Statistics appear on screen: Max, Min, Avg, Date and Time
On-Line display of data logger values
Zoom capability with automatic statistics update
User keyed text annotations
Automatically displays values at the cursor position
Export data to spreadsheet and database software
Print both graphs and tabular listings
Paste graphs into other applications
Automatic selection for AC loggersAutomatic baud rate selection (version 6.0 or later)
