AEMC CA7024 Cable Tester
|
Item Number: 2127.80
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2127.80
* Whole number only
|
|

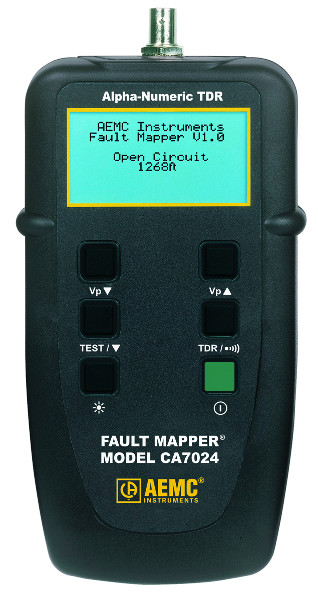

AEMC CA7024 Cable Tester
The Fault Mapper Model CA7024 is a hand-held, alphanumeric, TDR (Time Domain Reflectometer) Cable Length Meter and Fault Locator, designed to measure the length of electrical and communication cables. It can also indicate the distance to a fault in the cable (open or short), given access to only one end of a two or more conductor cable. By incorporating fast-edge step TDR technology, the Model CA7024 measures cable length and indicates the distance to open or short circuit faults. to a range of 6000 ft (2000m), on at least two conductors. The Model CA7024 indicates the cable length or fault distance and description, alphanumerically on a 128 x 64 graphical LCD. Features
- Hand-held Cable Length Meter and Fault Locator
- Detect opens and shorts and the distance to them from one end of the cable
- Measure cable length up to 6000 ft (2000m) in feet or meters
- Automatic cable impedance compensation
- Built-in library of most common cables and their Vp (Velocity of Propagation)
- Manual selection of Vp for all cables not found in library
- Vp setting displayed long with length and cable type (if in library)
- Built-in tone generator for tracing and locating cables
- Large high-visibility blue electroluminescent back-lit display
- CE Mark
.jpg)

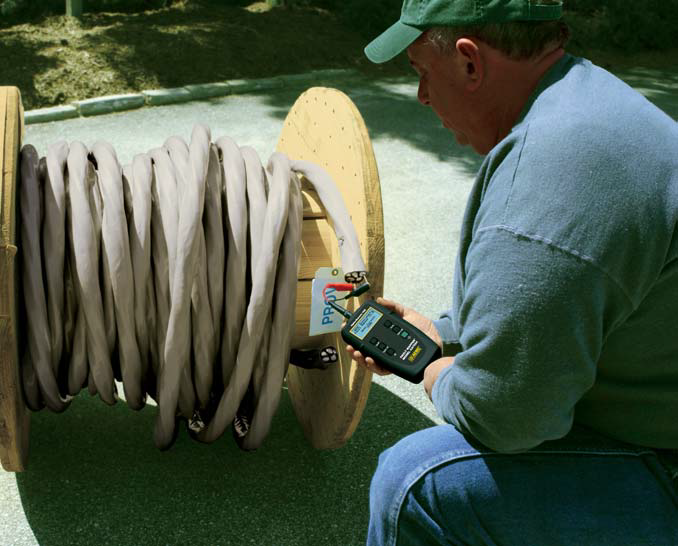

Model CA7024 checking the length of power cable on a reel.
Applications
- Determine length of cables on reels, coils or in boxes
- Determine cable runs in wall, conduit and other surfaces
- Detect opens and shorts in cables and the length to them
- Trace cables to identify runs and location

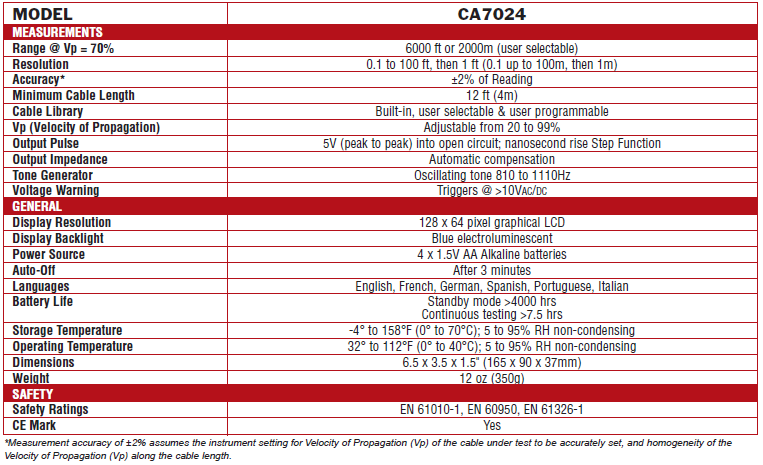

Technical Specifications
.jpg)

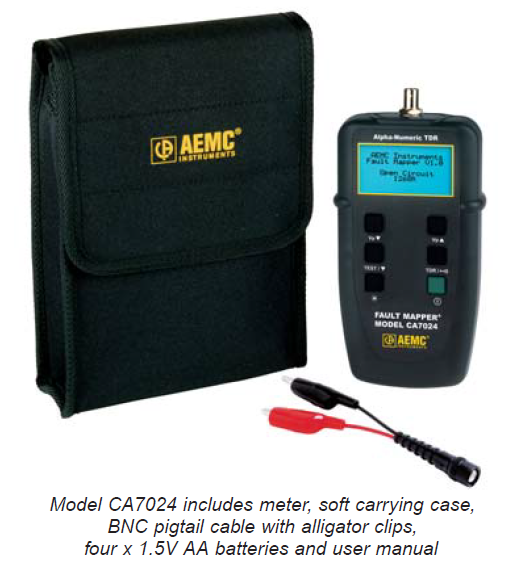

Accessories
.jpg)
|
