AEMC C.A 6116 Multi-Function Installation Tester

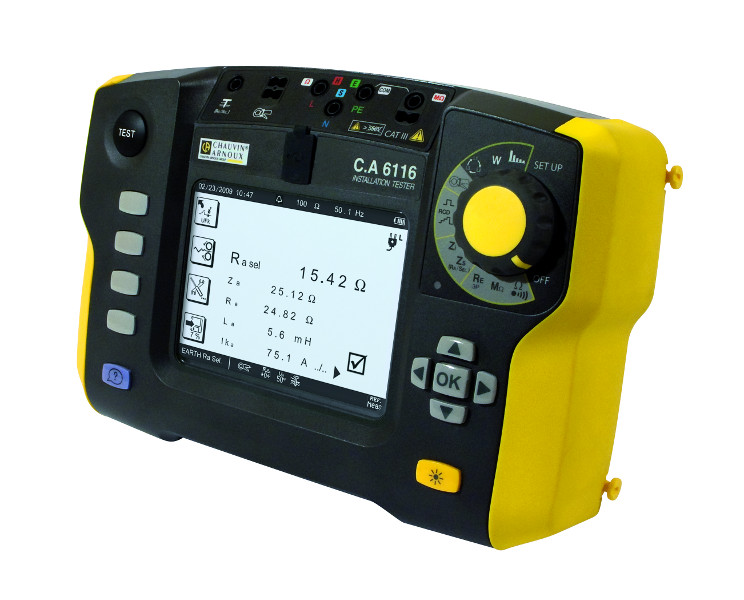

     The C.A 6116 is specifically designed to be quick and easy to learn. The user can view all the essential results at a glance on the large back-lit graphic display. The rotary switch on the instrument's front panel gives direct access to all the functions. A wide range of audible alarms and visual symbols are available for quick interpretation of the results in accordance with the standards.

Features

• Installation testing according to the international standards(IEC 60364-6,NF C 15-100,VDE 100, XP C 16-600)
• Fast operation with simple access to measurement functions and results
• User-friendly with its large 5.7" back-lit graphic screen
• Excellent measurement stability, especially in industrial environments that are affected by disturbances
• Simple, reliable connections
• Onscreen help for each function
• Suitable for all types of neutral systems
• Customized, hierarchical storage of measurement results
• 600V CAT III

Applications

• Initial electrical testing of a new installation
• Electrical testing after renovation
• Periodic testing of an installation
• Maintenance and troubleshooting on an installation

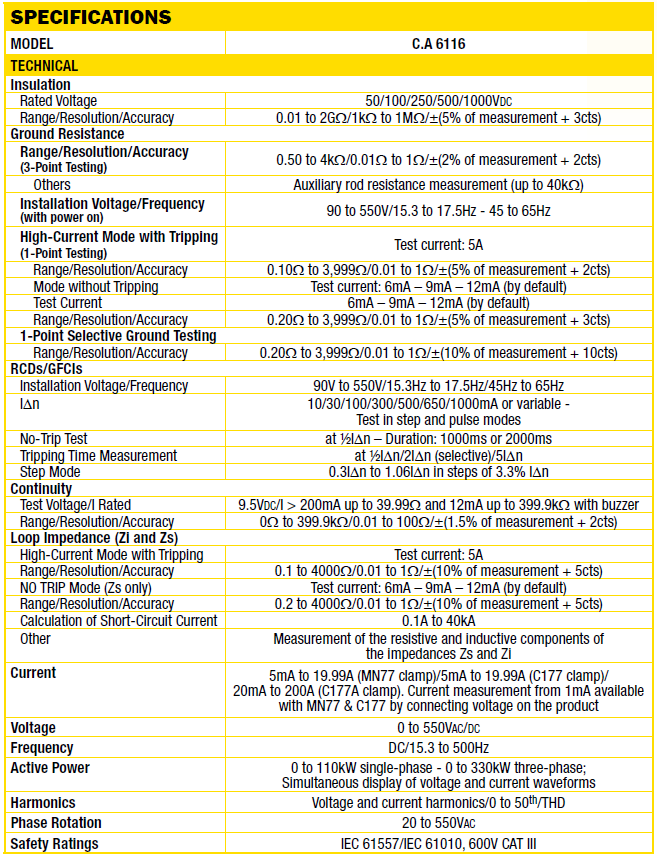

Technical Specifications

Accessories
