AEMC BR07 Resistance Decade Box

Our Price: $180.00

Item Number: 2131.25

Manufacturer: AEMC (Chauvin Arnoux)

Part Number: 2131.25

Product Options

* denotes required field

Calibration Options*

Calibration Not Included

Standard Calibration (+ $110.00)

ISO 17025 Accredited Calibration Certification (+ $210.00)

Quantity:

Email this page to a friend

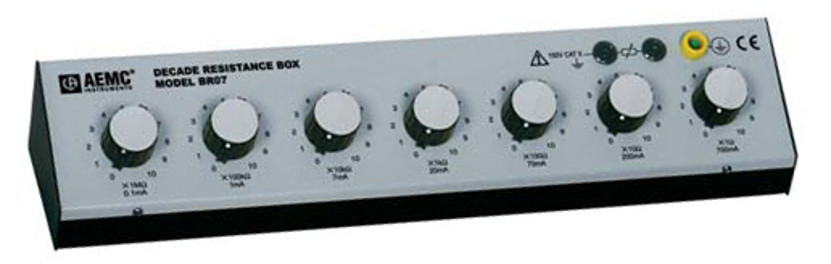

AEMC BR07 Resistance Decade Box

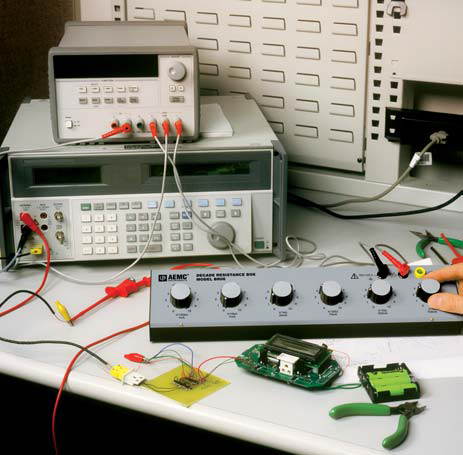

The Resistance Decade Box Model BR07 is built into a metal bench top box. It is used for testing and calibration of test equipment. The main function of the Model BR04 is to create a resistance with a specific value by using a combination of the rotary decade switches. The Model BR07 has seven decade ranges from 1 to 10MΩ. The Model BR07 is equipped with Ø 4mm safety terminals for connections. It is designed to EN 61010-1 safety standards. Includes ground jumper lead.

Features

Rotary switch selector
Stop position to prevent accidental switching from 10 to 0

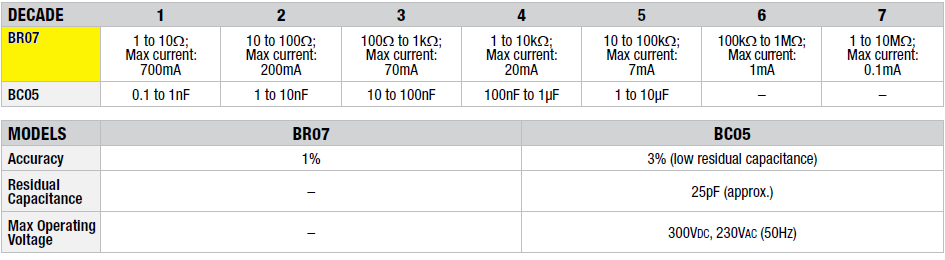

Seven decades: 1 to 10MΩ
Max Current: 0.1mA
Male ground (earth) terminal with safety jack
Outputs on Ø 4mm safety terminals

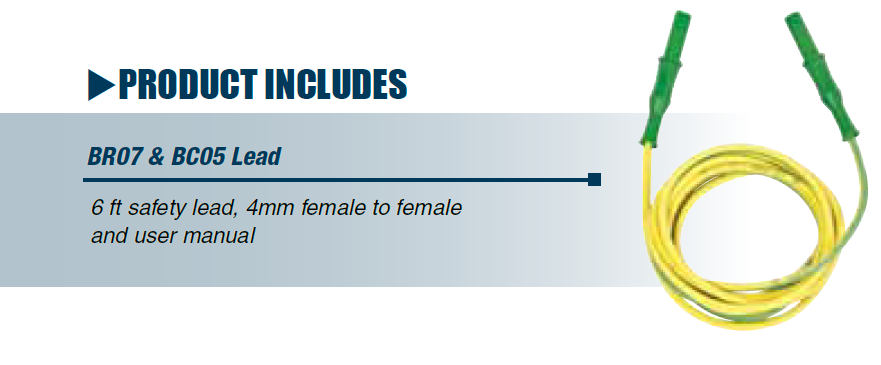

Ground jumper lead EN 61010-2-031, 150V Cat. II Pollution Degree 2
Accuracy 1%

Technical Specification
