AEMC BC05 Capacitance Decade Box

Our Price: $199.00

Item Number: 2131.26

Manufacturer: AEMC (Chauvin Arnoux)

Part Number: 2131.26

Product Options

* denotes required field

Calibration Options*

Calibration Not Included

Standard Calibration (+ $140.00)

ISO 17025 Accredited Calibration Certification (+ $225.00)

Quantity:

Email this page to a friend

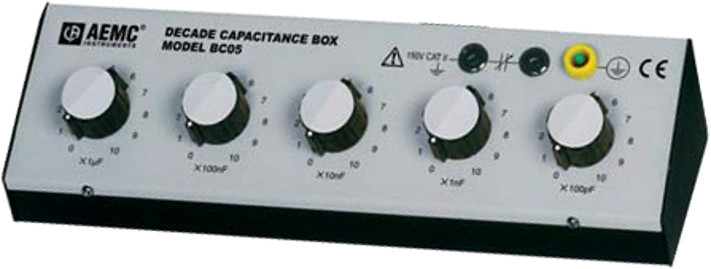

AEMC BC05 Capacitance Decade Box

The Capacitance Decade Box Model BC05 is built into a metal bench top box. It is used for testing and calibration of test equipment. The main function of the Model BC05 is to create a capacitance with a specific value by using a combination of the rotary decade switches. The Model BC05 has five decade ranges. The Model BC05 is equipped with Ø 4mm safety terminals for connections. It is designed to EN 61010-1 safety standards. Includes ground jumper lead.

Features

Rotary switch selector
Stop position to prevent accidental switching from 10 to 0
Five decades: 0.1 to 10µF
Total capacitance: 11.111µF
Residual capacitance: 25pF (approximately)
Male ground (earth) terminal with safety jack
Outputs on Ø 4mm safety terminals

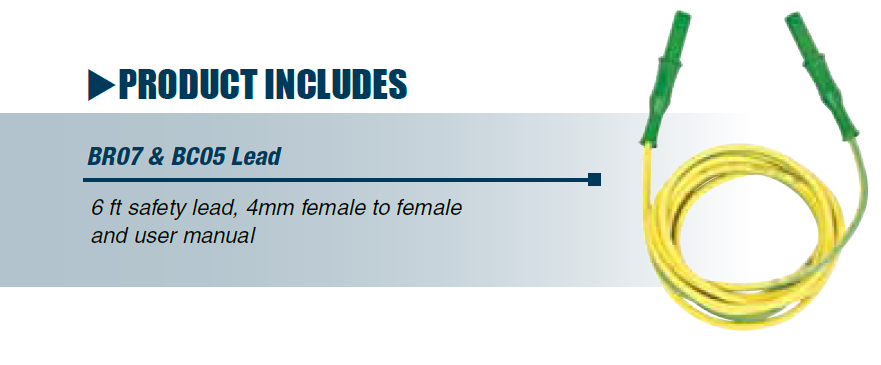

Ground jumper lead EN 61010-2-031, 150V Cat. II Pollution Degree 2
Accuracy 3%

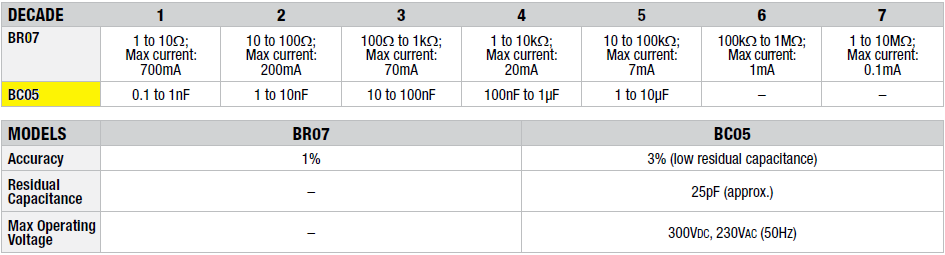

Technical Specification
